Главная Каталог продукции Toolunited 10 201-10 - Round insert RHHT1605M0TN IN2005

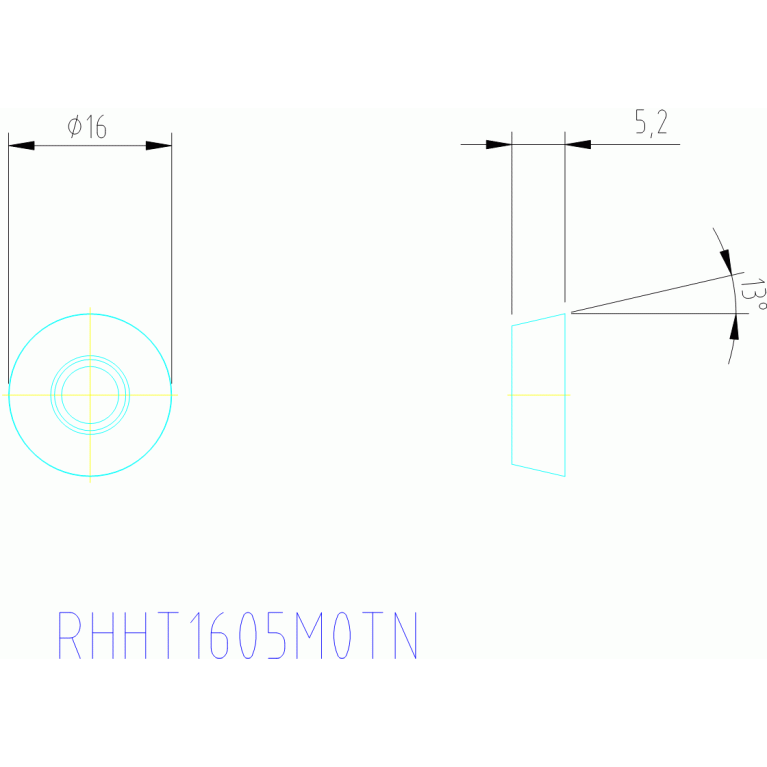

RHHT1605M0TN IN2005

Артикул: 5866453

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

13 Degree

CB Chip breaker face count

1 - With chip breaker one-side

COATN Coating

TiAIN

COMPC Company code

IL - Ingersoll

D1 Fixing hole diameter

5.4 mm

Delivery state

LH - Stocked

DIN

RH1605 3N

FamilyProducts

insert, min. four-edged, positive, geometry with K-land

GRD2ND Standard designation of the grade 2nd application

M15-M35

GRD3RD Standard designation of the grade 3rd application

K20-K40

GRDMFG Grade manufacturers designation

IN2005

GRDPRIO Standard designation of the grade main application

P15-P30

IC Inscribed circle diameter

16 mm

ID Technical product number

5866453

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-10 - Round insert

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

RH1605 3N

M M-dimension

16 mm

Name Identifying order number

RHHT1605M0TN IN2005

S Insert thickness

5.2 mm

S1 Insert thickness total

5.2 mm

STDDES Standard designation

RHHT1605M0

TCINS Tolerance class insert

Working process

No working processes available
