Главная Каталог продукции Toolunited 10 201-10 - Round insert RHHT1003M0TN-P IN2005

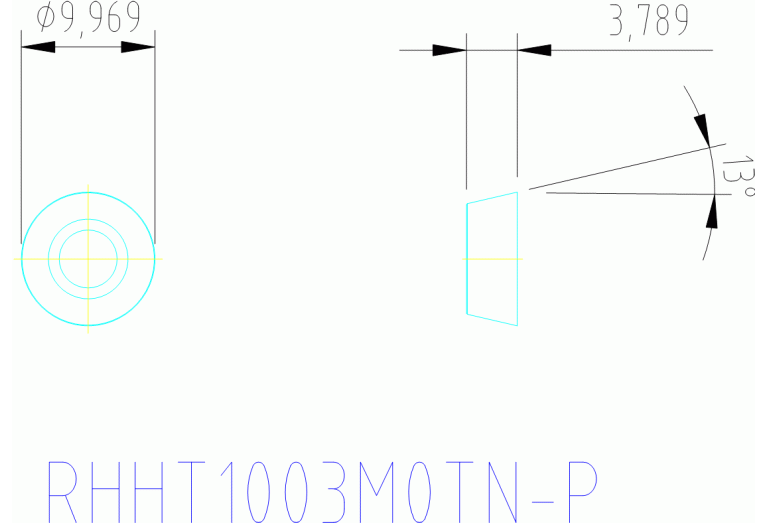

RHHT1003M0TN-P IN2005

Артикул: 5811847

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

13 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

COATN Coating

TiAIN

COMPC Company code

IL - Ingersoll

D1 Fixing hole diameter

4.4 mm

Delivery state

SF - Made to order

DIN

RH1003 3N

FamilyProducts

insert, min. four-edged, titanium geometry, polished

GRD2ND Standard designation of the grade 2nd application

M15-M35

GRD3RD Standard designation of the grade 3rd application

K20-K40

GRDMFG Grade manufacturers designation

IN2005

GRDPRIO Standard designation of the grade main application

P15-P30

IC Inscribed circle diameter

10 mm

ID Technical product number

5811847

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-10 - Round insert

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

RH1003 3N

M M-dimension

10 mm

Name Identifying order number

RHHT1003M0TN-P IN2005

S Insert thickness

3.8 mm

S1 Insert thickness total

3.8 mm

STDDES Standard designation

RHHT1003M0

TCINS Tolerance class insert

Working process

No working processes available
