Главная Каталог продукции Toolunited 10 201-10 - Round insert RDHX0501M0-A57 WKP25

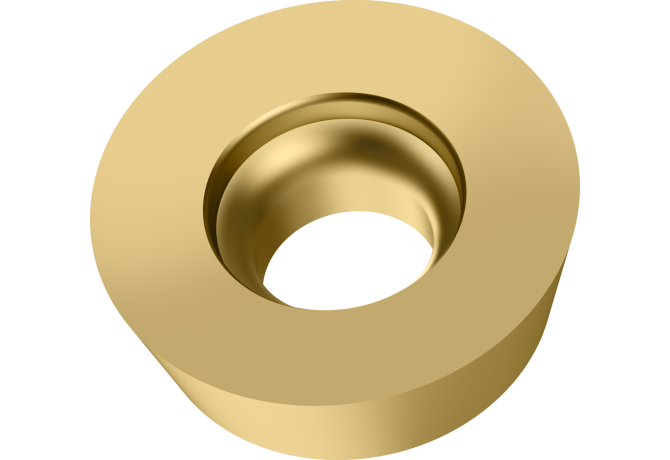

RDHX0501M0-A57 WKP25

Артикул: 5092255

В наличии

В корзину

Описание

Характеристики

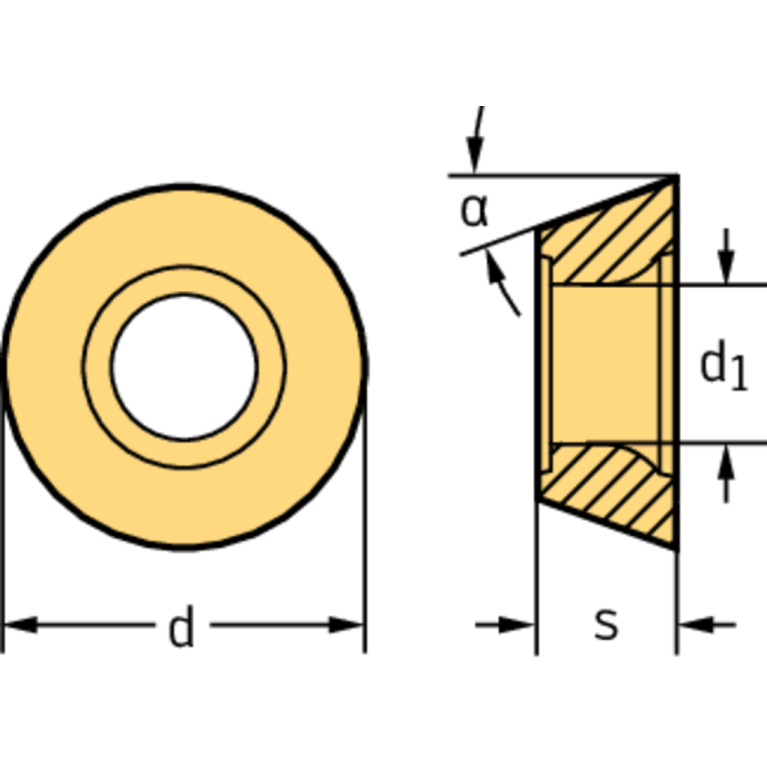

AN Clearance angle major

15 Degree

CBMD Chip breaker manufacturers designation

A57

CECC Cutting edge condition code

S - Chamfered and rounded

COMPC Company code

W - Walter

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

2.15 mm

Delivery state valid from

12/1/2023

DIN

W-RD0501M03NB$$M0

FamilyProducts

Positive round RDHX

GRDMFG Grade manufacturers designation

WKP25

IC Inscribed circle diameter

5 mm

ID Technical product number

5092255

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

WR$$RD0501M03NB$$M0

ISYC Subclass

201-10 - Round insert

LOC-03 ISO

WR$$RD0501M03NB$$M0

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

W-RD0501M03NB$$M0

M M-dimension

5 mm

Name Identifying order number

RDHX0501M0-A57 WKP25

S Insert thickness

1.5 mm

S1 Insert thickness total

1.5 mm

STDDES Standard designation

RDHX0501M0

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

FPL - Face milling

WT Weight of item

0.001 kg
