Главная Каталог продукции Toolunited 10 201-10 - Round insert RDHW2006M0-A57 WKP25

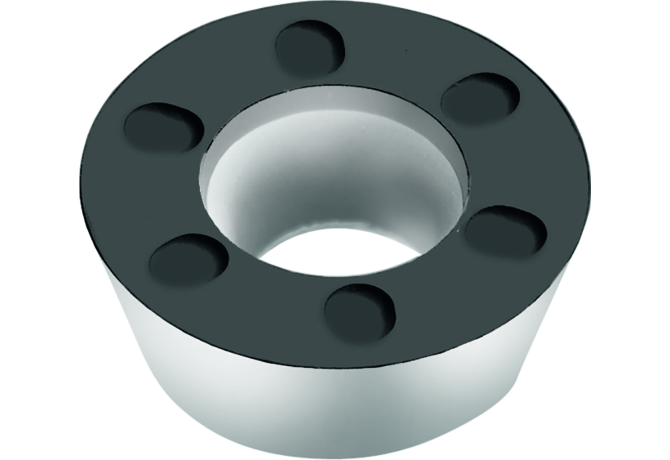

RDHW2006M0-A57 WKP25

Артикул: 5092254

В наличии

В корзину

Описание

Характеристики

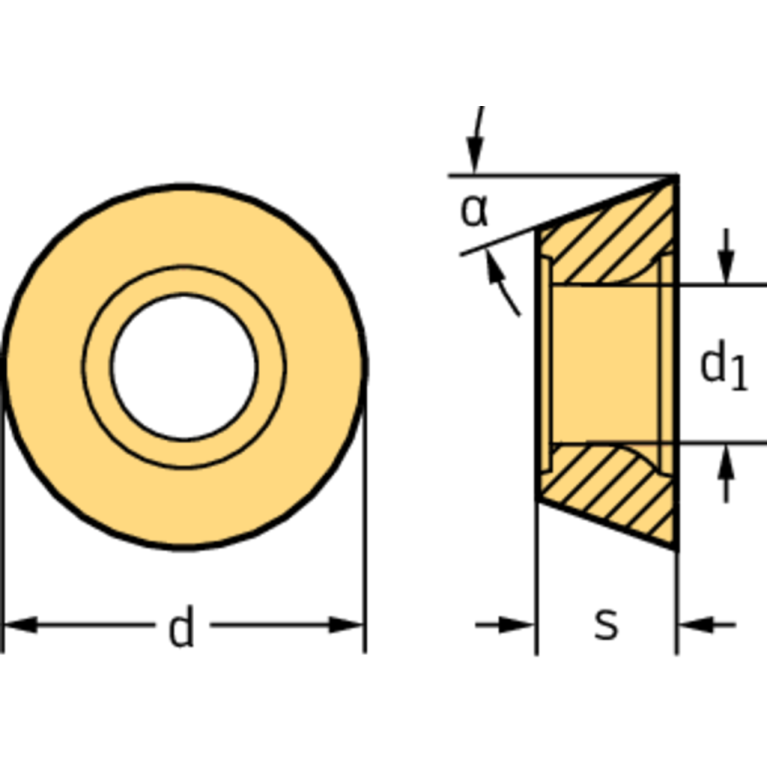

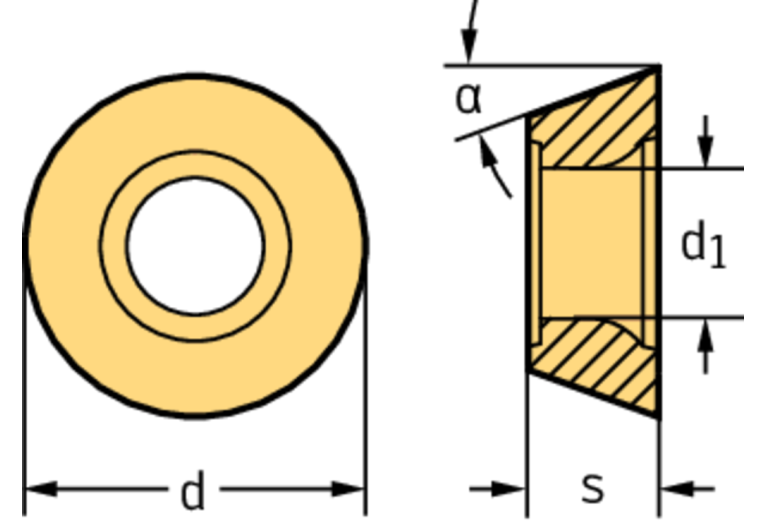

AN Clearance angle major

15 Degree

CBMD Chip breaker manufacturers designation

A57

CECC Cutting edge condition code

S - Chamfered and rounded

COMPC Company code

W - Walter

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

6.5 mm

Delivery state valid from

12/1/2023

DIN

W-RD2006M03NB$$M0

FamilyProducts

Positive round RDHW

GRDMFG Grade manufacturers designation

WKP25

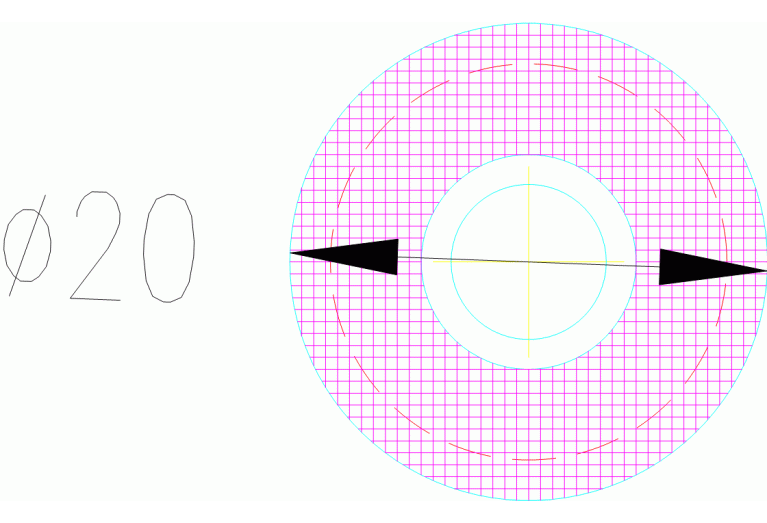

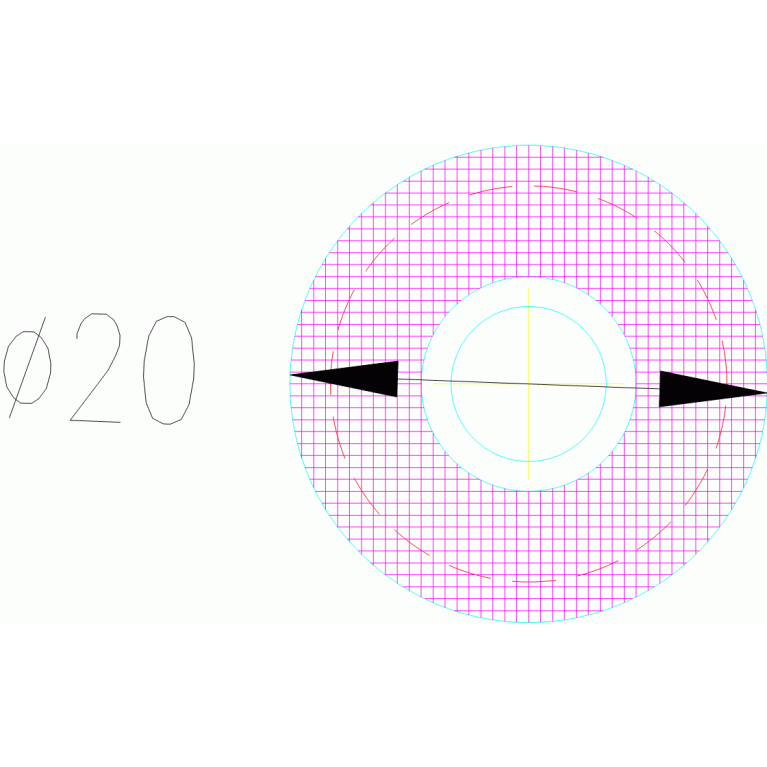

IC Inscribed circle diameter

20 mm

ID Technical product number

5092254

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

WR$$RD2006M03NB$$M0

ISYC Subclass

201-10 - Round insert

LOC-03 ISO

WR$$RD2006M03NB$$M0

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

W-RD2006M03NB$$M0

M M-dimension

20 mm

Name Identifying order number

RDHW2006M0-A57 WKP25

S Insert thickness

6.35 mm

S1 Insert thickness total

6.35 mm

STDDES Standard designation

RDHW2006M0

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

FPL - Face milling

WT Weight of item

0.021 kg
