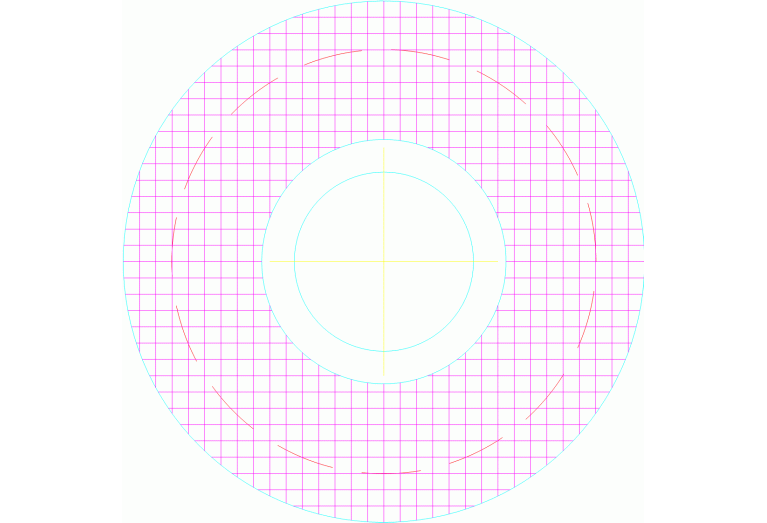

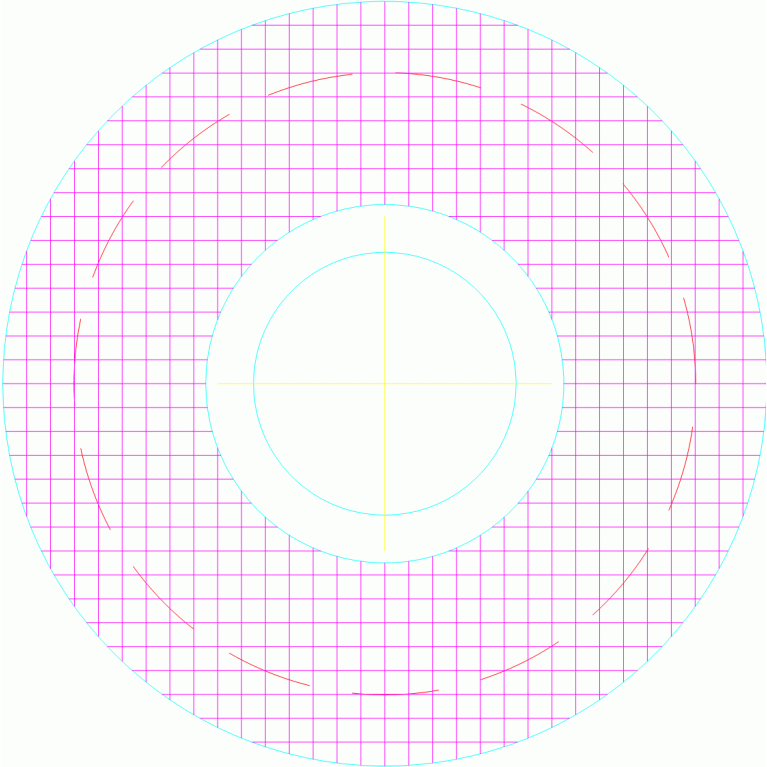

RDHW1605M0-A57 WXH15

Артикул: 5021583

В наличии

В корзину

Описание

Характеристики

CBMD Chip breaker manufacturers designation

A57

CECC Cutting edge condition code

S - Chamfered and rounded

COMPC Company code

W - Walter

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

5.5 mm

Delivery state valid from

12/1/2023

DIN

W-RD1605M03NB$$M0

FamilyProducts

Positive round RDHW

GRDMFG Grade manufacturers designation

WXH15

IC Inscribed circle diameter

16 mm

ID Technical product number

5021583

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

WR$$RD1605M03NB$$M0

ISYC Subclass

201-10 - Round insert

LOC-03 ISO

WR$$RD1605M03NB$$M0

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

W-RD1605M03NB$$M0

M M-dimension

16 mm

Name Identifying order number

RDHW1605M0-A57 WXH15

S Insert thickness

5.56 mm

S1 Insert thickness total

5.56 mm

STDDES Standard designation

RDHW1605M0

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

FPL - Face milling

WT Weight of item

0.012 kg
