Главная Каталог продукции Toolunited 10 201-10 - Round insert RDHT10T3M0-8-E04 H25

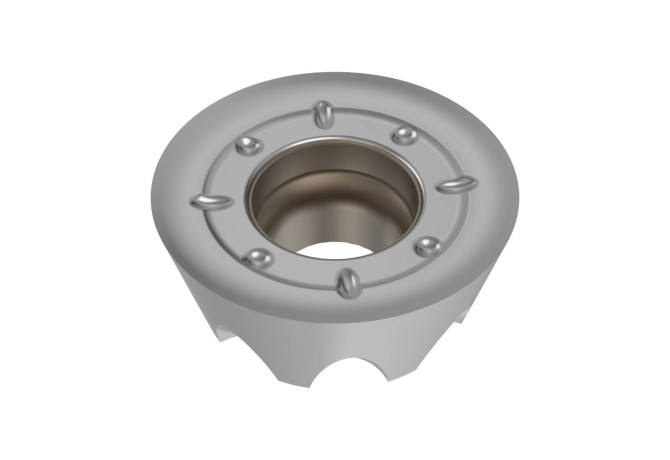

RDHT10T3M0-8-E04 H25

Артикул: 03280714

В наличии

В корзину

Описание

Характеристики

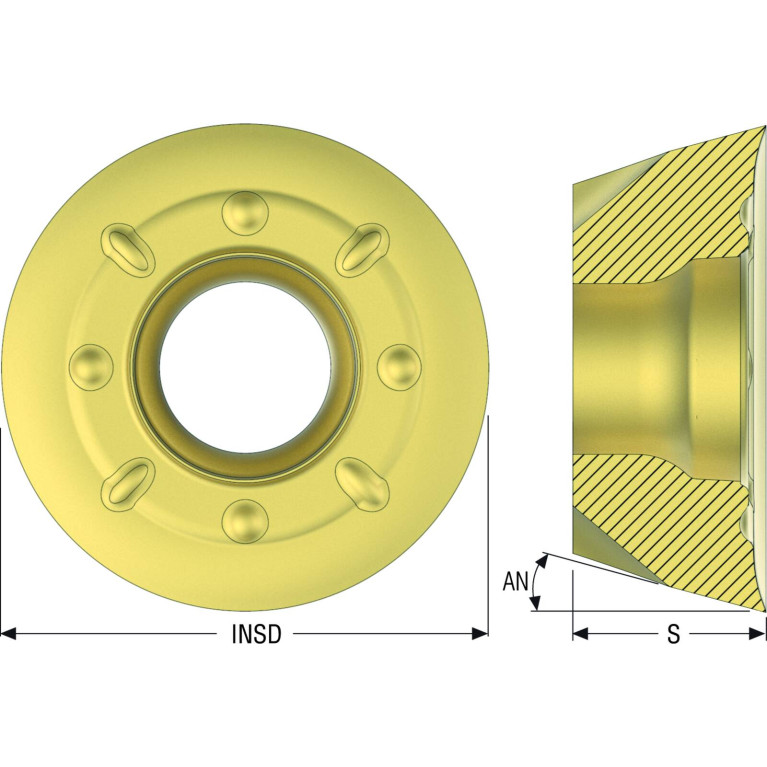

AN Clearance angle major

15 Degree

CB Chip breaker face count

0 - Without chip breaker

COMPC Company code

SO - SECO Tools

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

12/1/2023

DIN

SO-RD10T3 3N

FamilyProducts

RDHT10T3M0-8-E04 H25

GAN Insert rake angle

20 Degree

GRDMFG Grade manufacturers designation

H25

IC Inscribed circle diameter

10 mm

ID Technical product number

03280714

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-10 - Round insert

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SO-RD10T3 3N

M M-dimension

10 mm

MIID Master insert identification

RDHT10T3M0 H25

Name Identifying order number

RDHT10T3M0-8-E04 H25

S Insert thickness

3.97 mm

S1 Insert thickness total

3.97 mm

STDDES Standard designation

RDHT10T3M0

TCINS Tolerance class insert

Working process

No working processes available
