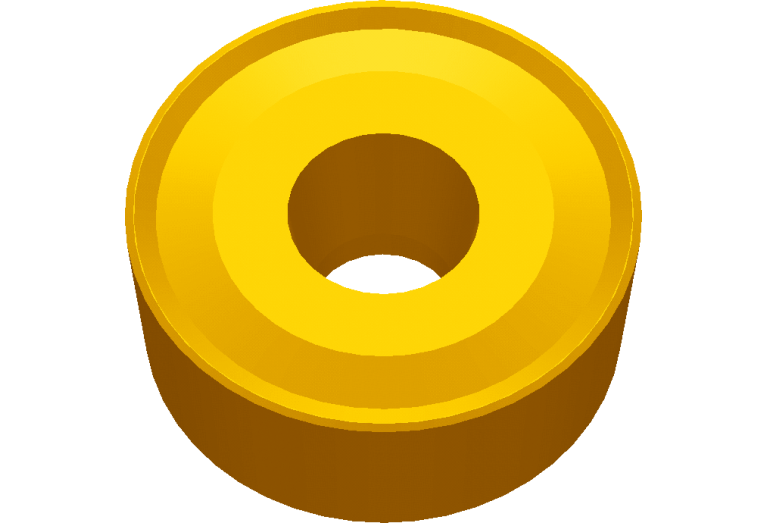

RCMX3209MO YBC252

Артикул: RCMX3209MO YBC252

В наличии

В корзину

Описание

Характеристики

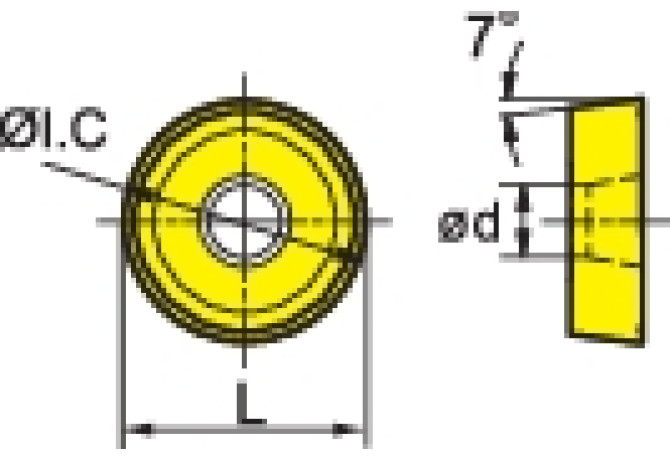

AN Clearance angle major

7 Degree

COATN Coating

TiCN,Al2O3

COMPC Company code

ZCC - ZCC Cutting Tools

D1 Fixing hole diameter

10.2 mm

Delivery state valid from

0.8729 kg

DIN

RC3209M03N

FamilyProducts

RC** positive insert

GRDMFG Grade manufacturers designation

YBC252

GRDPRIO Standard designation of the grade main application

P10-P35

IC Inscribed circle diameter

32 mm

ID Identifying order number

RCMX3209MO YBC252

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-10 - Round insert

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

RC3209M03N

M M-dimension

32 mm

S Insert thickness

9.52 mm

S1 Insert thickness total

9.52 mm

TCINS Tolerance class insert

Working process

No working processes available
