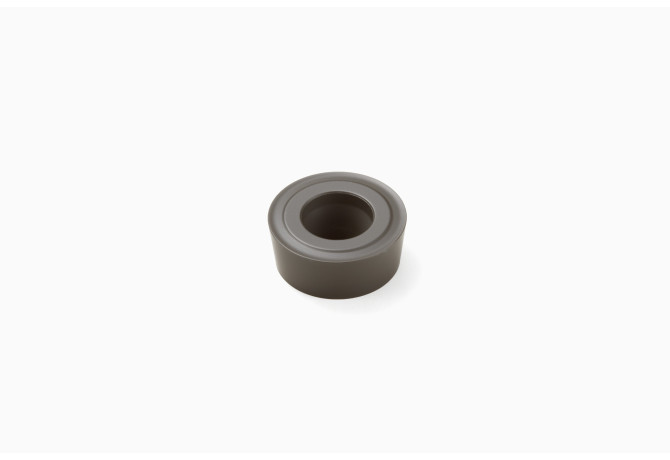

RCMT1606M0-F1 TP0500
RCMT1606M0-F1 TP0500
Артикул:
02792616
В наличии
Характеристики

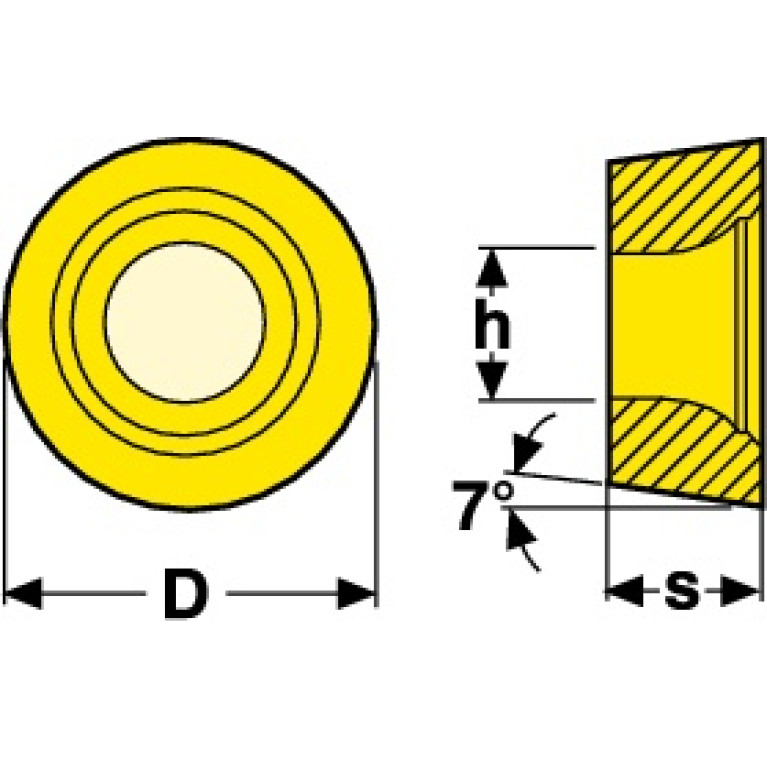

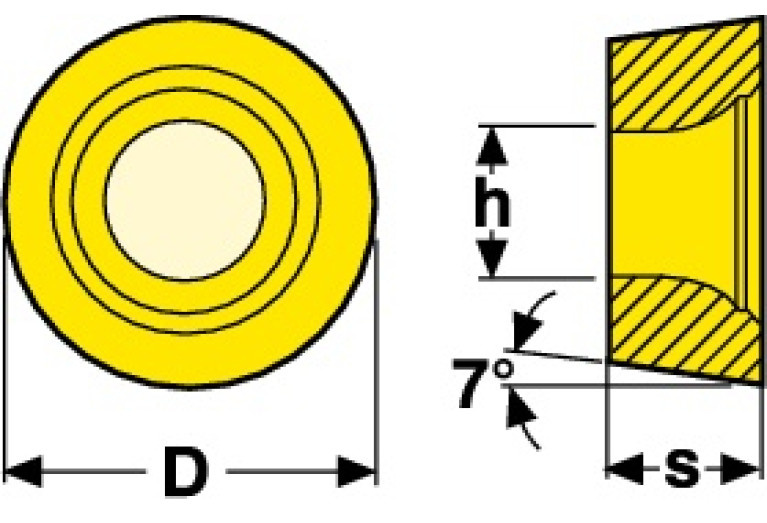

AN Clearance angle major
7 Degree
CB Chip breaker face count
1 - With chip breaker one-side
CBMD Chip breaker manufacturers designation
F1
COMPC Company code
SO - SECO Tools
Delivery state valid from
6/7/2017
DIN
RC1606M03N
FamilyProducts
RCMT1606M0-F1 TP0500
GRDMFG Grade manufacturers designation
TP0500
IC Inscribed circle diameter
16 mm
ID Technical product number
02792616
IFS Insert mounting style code
3 - Counter bore for screws with taper angle from 40° to 60°
IH Insert hand
N - Neutral
Interface codes
J6 /
ISISO ISO property
1
ISYC Subclass
201-10 - Round insert
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
RC1606M03N
M M-dimension
16 mm
MIID Master insert identification
RCMT1606M0 TP0500
Name Identifying order number
RCMT1606M0-F1 TP0500
S Insert thickness
6.35 mm
S1 Insert thickness total
6.35 mm
STDDES Standard designation
RCMT1606M0
TCINS Tolerance class insert
M
Working process
No working processes available
WT Weight of item
0.1 kg
