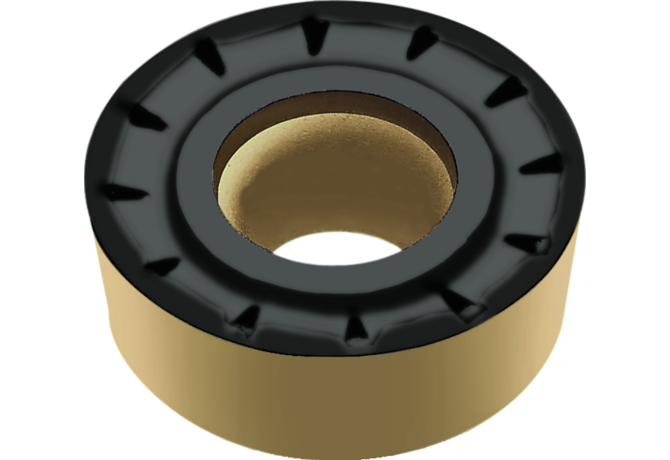

RCMT1605M0-PM5 WAK20

Артикул: 5025020

В наличии

В корзину

Описание

Характеристики

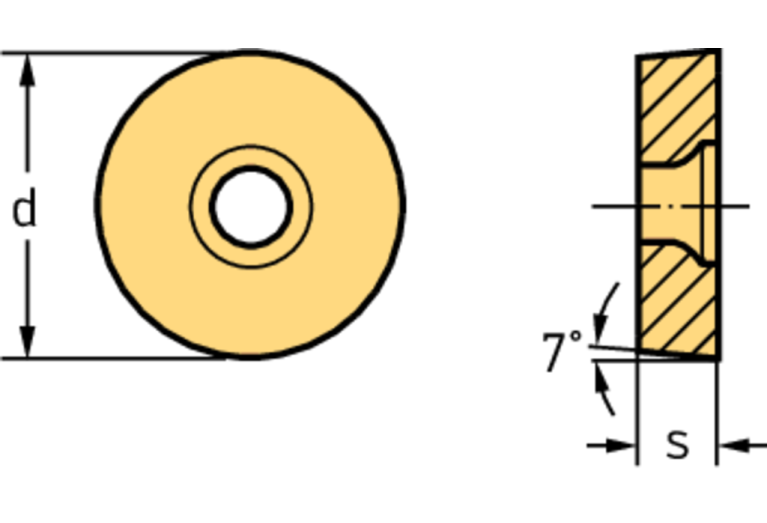

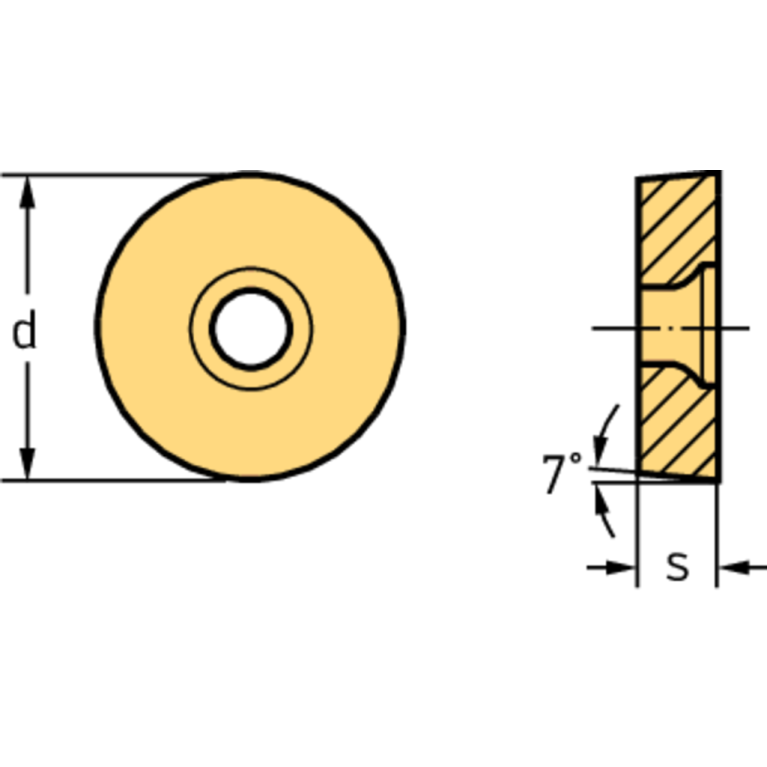

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

PM5

COMPC Company code

W - Walter

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

5.5 mm

Delivery state valid from

12/1/2023

DIN

RC1605M03N

FamilyProducts

Positive round RCMT

GRDMFG Grade manufacturers designation

WAK20

IC Inscribed circle diameter

16 mm

ID Technical product number

5025020

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

ISO$RC1605M03NB$$M0

ISYC Subclass

201-10 - Round insert

LOC-03 ISO

ISO$RC1605M03NB$$M0

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

RC1605M03N

M M-dimension

16 mm

MIID Master insert identification

RCMT1605M0 WAK20

Name Identifying order number

RCMT1605M0-PM5 WAK20

S Insert thickness

5.56 mm

S1 Insert thickness total

5.56 mm

STDDES Standard designation

RCMT1605M0

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

No working processes available

WT Weight of item

0.012 kg
