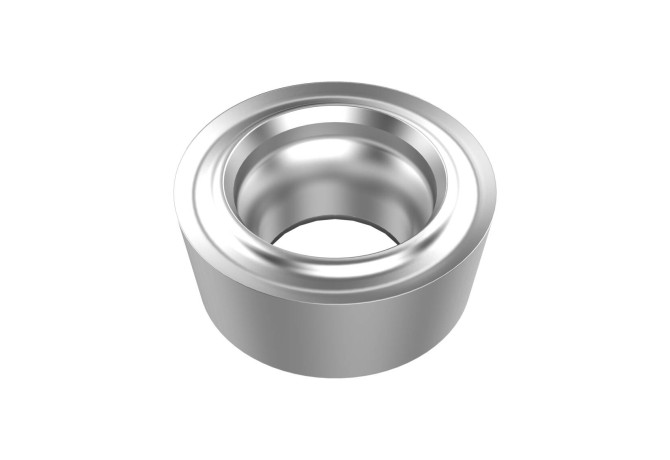

RCMT1204M0-F1 TP3501
RCMT1204M0-F1 TP3501
Артикул:
03096399
В наличии
Характеристики

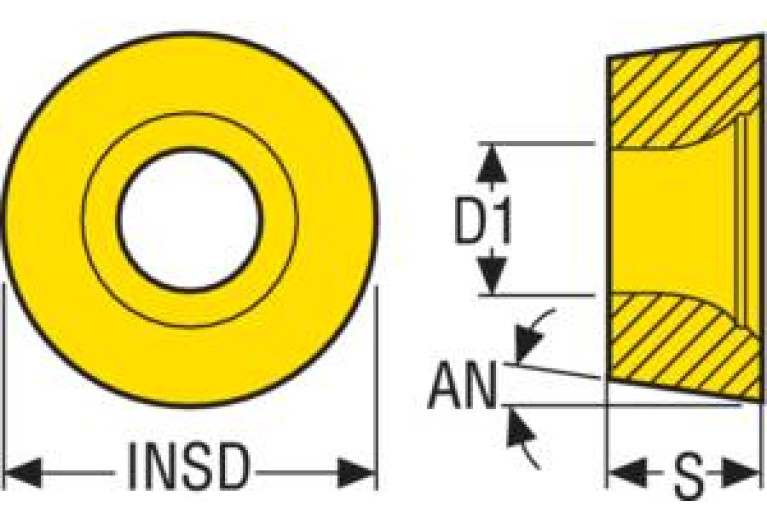

AN Clearance angle major
7 Degree
CB Chip breaker face count
1 - With chip breaker one-side
CBMD Chip breaker manufacturers designation
F1
COMPC Company code
SO - SECO Tools
CSP Coolant supply property
0 - Without coolant supply
Delivery state valid from
12/1/2023
DIN
SO-RC1204 3N
FamilyProducts
RCMT1204M0-F1 TP3501
GRDMFG Grade manufacturers designation
TP3501
IC Inscribed circle diameter
12 mm
ID Technical product number
03096399
IFS Insert mounting style code
3 - Counter bore for screws with taper angle from 40° to 60°
IH Insert hand
N - Neutral
Interface codes
J6 /
ISISO ISO property
1
ISYC Subclass
201-10 - Round insert
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
SO-RC1204 3N
M M-dimension
12 mm
MIID Master insert identification
RCMT1204M0 TP3501
Name Identifying order number
RCMT1204M0-F1 TP3501
S Insert thickness
4.76 mm
S1 Insert thickness total
4.76 mm
STDDES Standard designation
RCMT1204M0
STDDESAnsi Standard designation ANSI
RCMT43V
TCINS Tolerance class insert
M
Working process
No working processes available
