RCMT10T3M0-PM5 WSM20

Артикул: 5614949

В наличии

В корзину

Описание

Характеристики

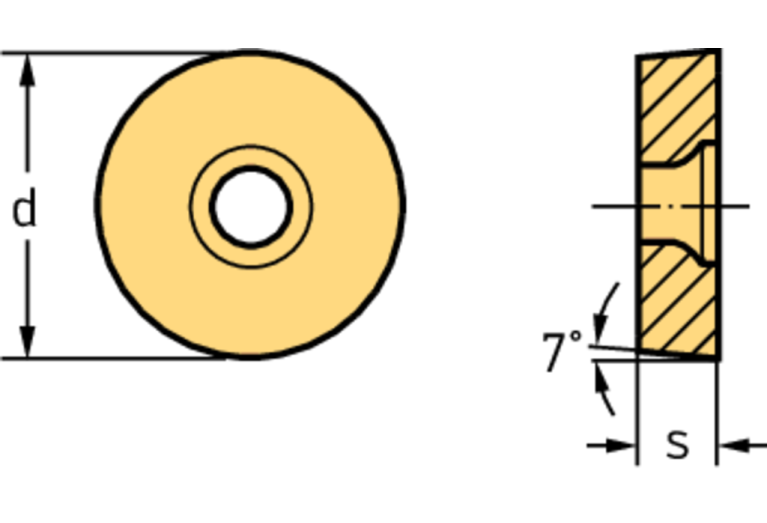

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

PM5

COATN Coating

TiAlN+Al2O3+(ZrN)

COMPC Company code

W - Walter

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

4.4 mm

Delivery state valid from

12/1/2023

DIN

RC10T3M03N

FamilyProducts

Positive round RCMT

GRDMFG Grade manufacturers designation

WSM20

IC Inscribed circle diameter

10 mm

ID Technical product number

5614949

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

ISO$RC10T3M03NB$$M0

ISYC Subclass

201-10 - Round insert

LOC-03 ISO

ISO$RC10T3M03NB$$M0

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

RC10T3M03N

M M-dimension

10 mm

MIID Master insert identification

RCMT10T3M0 WSM20

Name Identifying order number

RCMT10T3M0-PM5 WSM20

S Insert thickness

3.96875 mm

S1 Insert thickness total

3.96875 mm

STDDES Standard designation

RCMT10T3M0

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

No working processes available

WT Weight of item

0.003 kg
