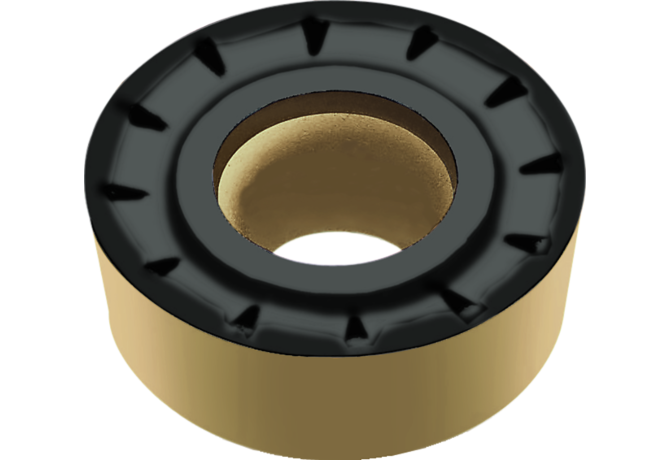

RCMT060300-PM5 WSM30

Артикул: 5522343

В наличии

В корзину

Описание

Характеристики

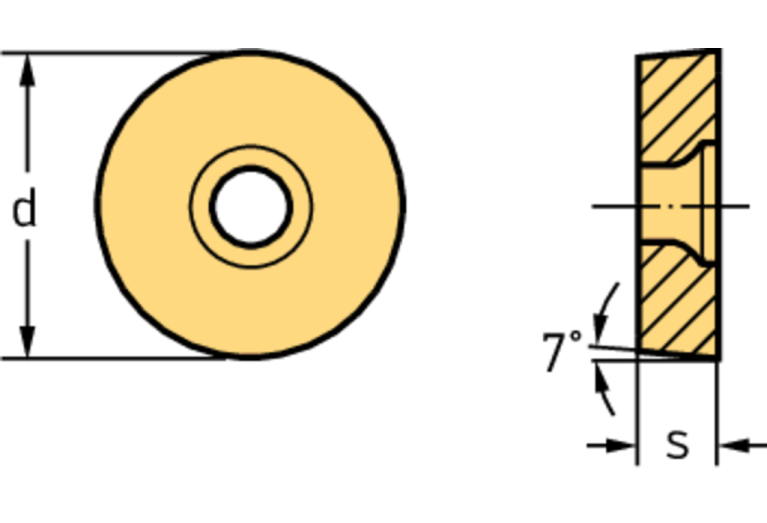

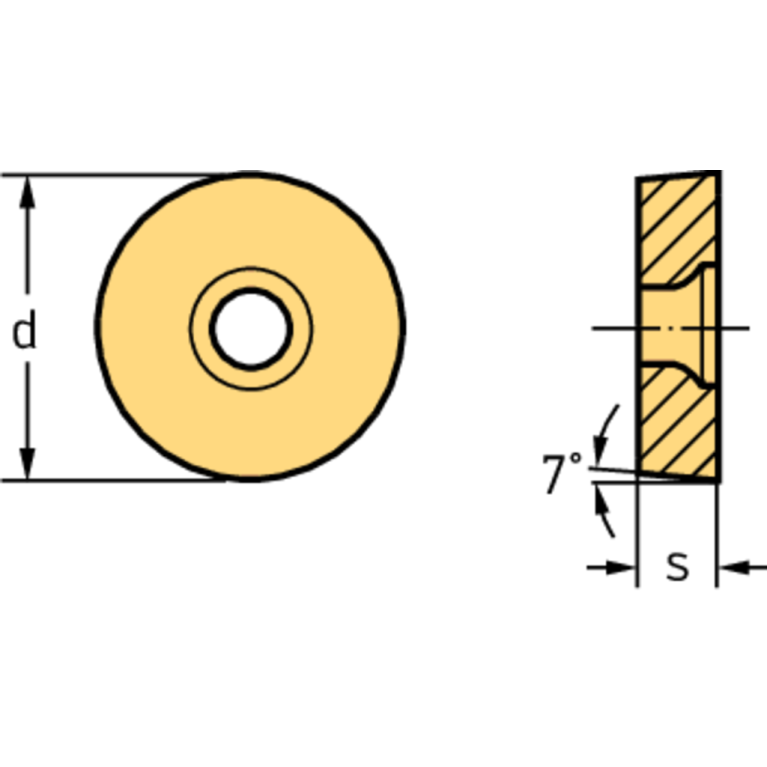

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

PM5

COATN Coating

TiAlN+Al2O3+(ZrN)

COMPC Company code

W - Walter

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

2.8 mm

Delivery state valid from

12/1/2023

DIN

RC0603003N

FamilyProducts

Positive round RCMT

GRDMFG Grade manufacturers designation

WSM30

IC Inscribed circle diameter

6.35 mm

ID Technical product number

5522343

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

ISO$RC0603003NB$$00

ISYC Subclass

201-10 - Round insert

LOC-03 ISO

ISO$RC0603003NB$$00

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

RC0603003N

M M-dimension

6.35 mm

MIID Master insert identification

RCMT060300 WSM30

Name Identifying order number

RCMT060300-PM5 WSM30

NameAnsi Identifying order number inch alternative

RCMT22-PM5 WSM30

S Insert thickness

3.175 mm

S1 Insert thickness total

3.175 mm

STDDES Standard designation

RCMT060300

STDDESAnsi Standard designation ANSI

RCMT220

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

No working processes available

WT Weight of item

0.001 kg
