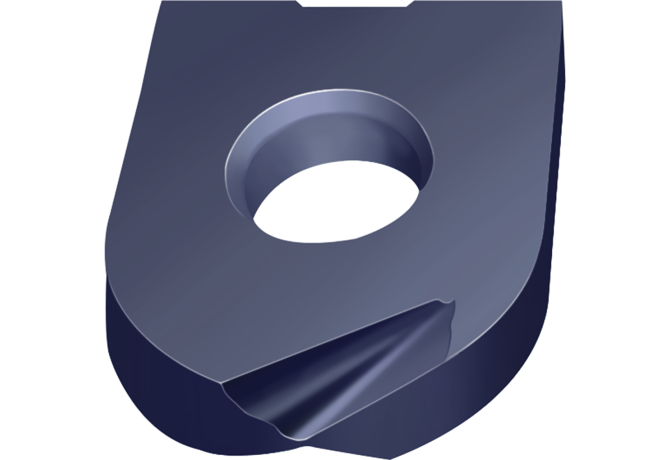

P3201-D12.7 WKP25
P3201-D12.7 WKP25
Артикул:
5097098
В наличии
Характеристики
CBMD Chip breaker manufacturers designation
A57
COATN Coating
TiCN+Al2O3+(TiN)
COMPC Company code
W - Walter
CSP Coolant supply property
0 - Without coolant supply

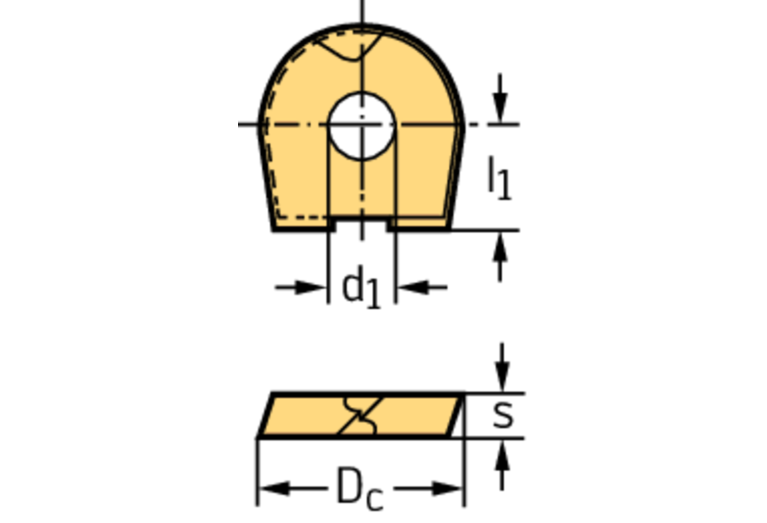

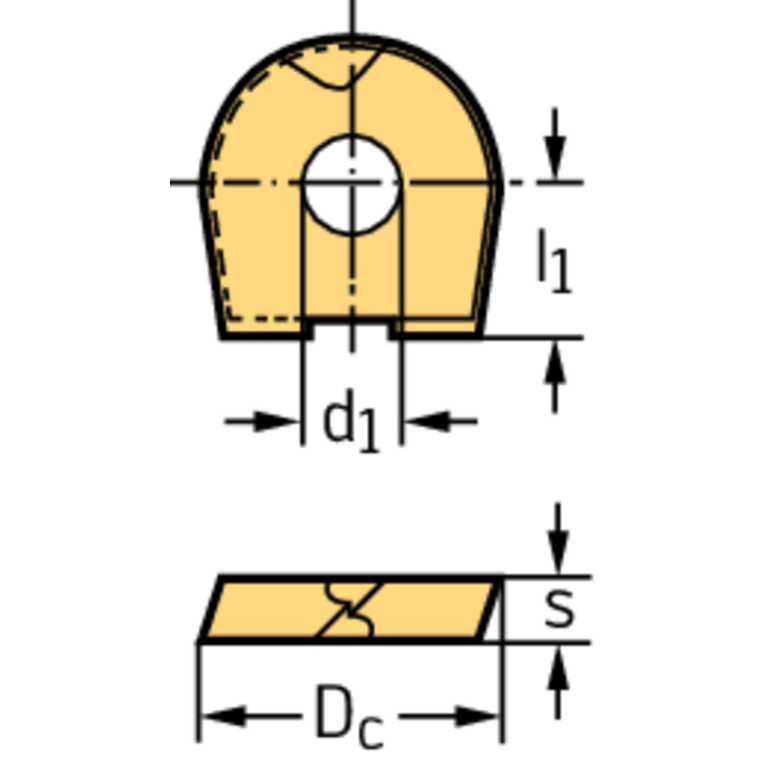

D1 Fixing hole diameter
5 mm
Delivery state valid from
12/1/2023
DIN
W-P32012$$3RB$$$$
FamilyProducts
Profile milling cutter inserts P3201
GRDMFG Grade manufacturers designation
WKP25
ID Technical product number
5097098
IFS Insert mounting style code
3 - Counter bore for screws with taper angle from 40° to 60°
IH Insert hand
R - Right
Interface codes
J6 / J441
ISISO ISO property
0
ISO
WR$$P32012$$3RB$$$$
ISYC Subclass
201-10 - Round insert
LOC-03 ISO
WR$$P32012$$3RB$$$$
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
W-P32012$$3RB$$$$
Name Identifying order number
P3201-D12.7 WKP25
S Insert thickness
2.5 mm
S1 Insert thickness total
2.5 mm
TCE Tipped cutting edge code
S
TCINS Tolerance class insert
H
Working process
FFO - Die milling
WT Weight of item
0.004 kg
