Главная Каталог продукции Toolunited 10 201-10 - Round insert P3201-D09.52 WXH15

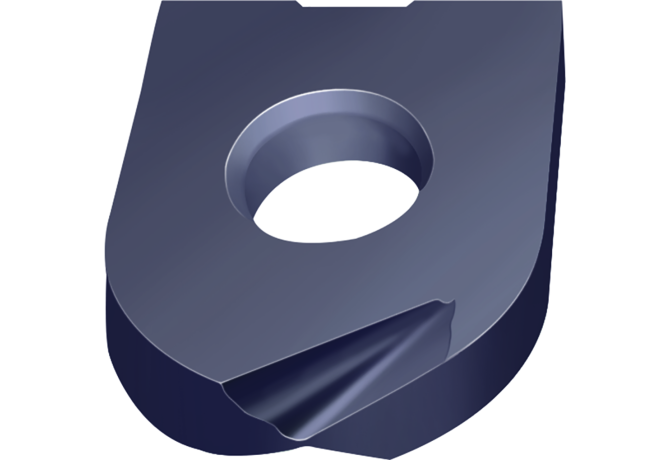

P3201-D09.52 WXH15

Артикул: 5025793

В наличии

В корзину

Описание

Характеристики

CBMD Chip breaker manufacturers designation

A57

COMPC Company code

W - Walter

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

4 mm

Delivery state valid from

12/1/2023

DIN

W-P32010$$3RB$$$$

FamilyProducts

Profile milling cutter inserts P3201

GRDMFG Grade manufacturers designation

WXH15

ID Technical product number

5025793

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 / J441

ISISO ISO property

ISO

WR$$P32010$$3RB$$$$

ISYC Subclass

201-10 - Round insert

LOC-03 ISO

WR$$P32010$$3RB$$$$

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

W-P32010$$3RB$$$$

Name Identifying order number

P3201-D09.52 WXH15

S Insert thickness

2.5 mm

S1 Insert thickness total

2.5 mm

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

FFO - Die milling

WT Weight of item

0.003 kg
