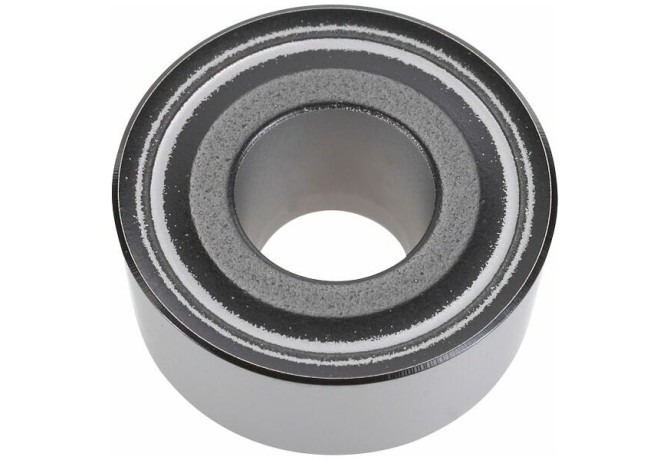

Главная Каталог продукции Toolunited 10 201-10 - Round insert 260640 HB7140-1

260640 HB7140-1

Артикул: 260640 HB7140-1

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

COATN Coating

TiCN/Al2O3 CVD layer

COMPC Company code

HOG - Hoffmann Group

CSP Coolant supply property

0 - Without coolant supply

DIN

RC1003M03N

FamilyProducts

RCMX 1003

GAN Insert rake angle

10 Degree

GRDMFG Grade manufacturers designation

HB7140-1

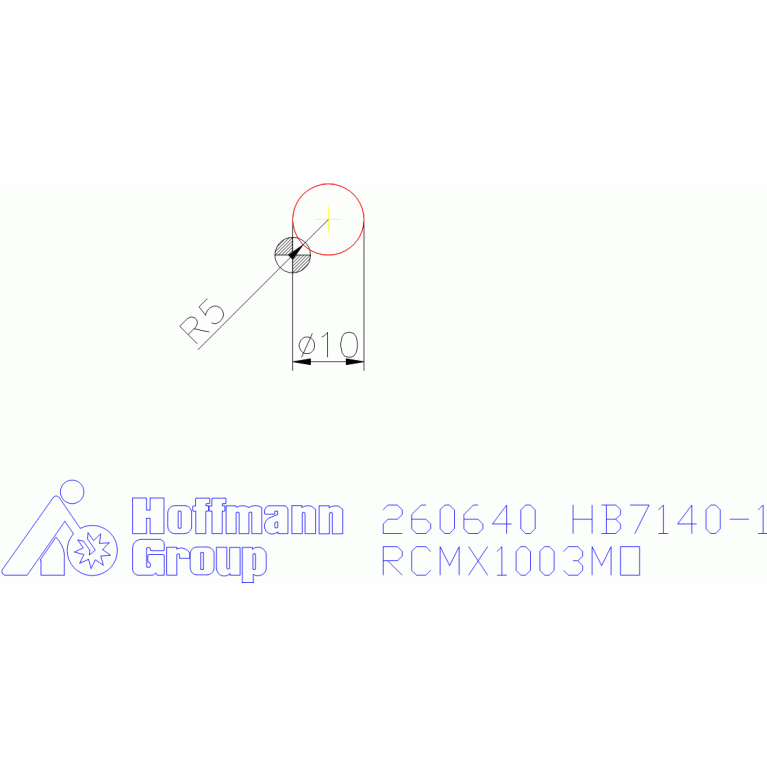

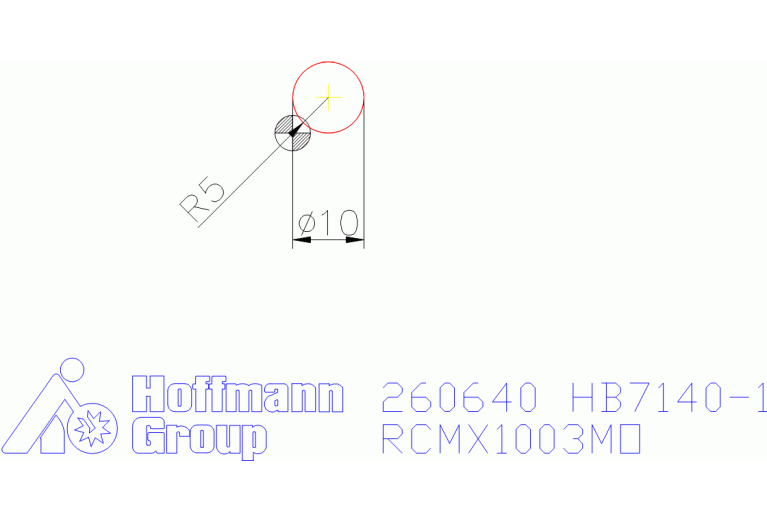

IC Inscribed circle diameter

10 mm

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-10 - Round insert

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

RC1003M03N

M M-dimension

10 mm

Name Identifying order number

260640 HB7140-1

S Insert thickness

3.18 mm

S1 Insert thickness total

3.18 mm

STDDES Standard designation

RCMX1003M0

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

No working processes available

WT Weight of item

0.003 kg
