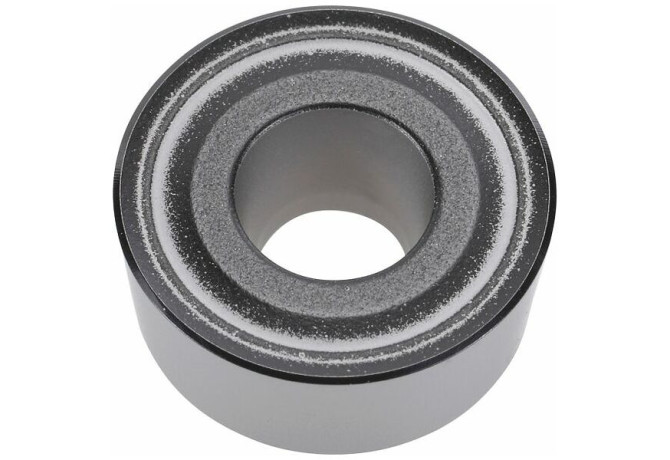

260640 HB7120-1
260640 HB7120-1
Артикул:
260640 HB7120-1
В наличии
Характеристики
AN Clearance angle major
7 Degree
COATN Coating
TiCN/Al2O3 CVD layer
COMPC Company code
HOG - Hoffmann Group
CSP Coolant supply property
0 - Without coolant supply
DIN
RC1003M03N
FamilyProducts
RCMX 1003
GAN Insert rake angle
10 Degree
GRDMFG Grade manufacturers designation
HB7120-1

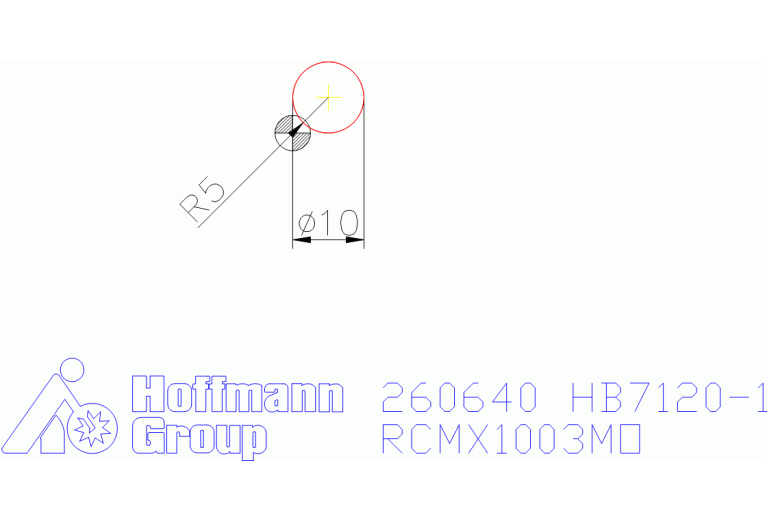

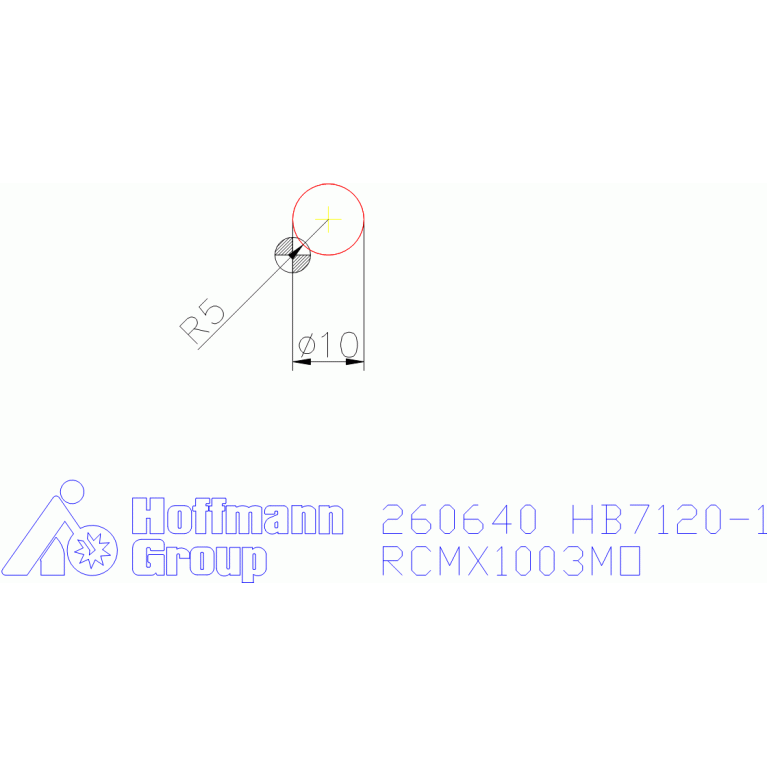

IC Inscribed circle diameter
10 mm
IFS Insert mounting style code
3 - Counter bore for screws with taper angle from 40° to 60°
IH Insert hand
N - Neutral
Interface codes
J6 /
ISISO ISO property
0
ISYC Subclass
201-10 - Round insert
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
RC1003M03N
M M-dimension
10 mm
Name Identifying order number
260640 HB7120-1
S Insert thickness
3.18 mm
S1 Insert thickness total
3.18 mm
STDDES Standard designation
RCMX1003M0
TCE Tipped cutting edge code
F
TCINS Tolerance class insert
M
Working process
No working processes available
WT Weight of item
0.003 kg
