Главная Каталог продукции Toolunited 10 201-09 - Octogonal insert ONCU090612FN-P IN10K

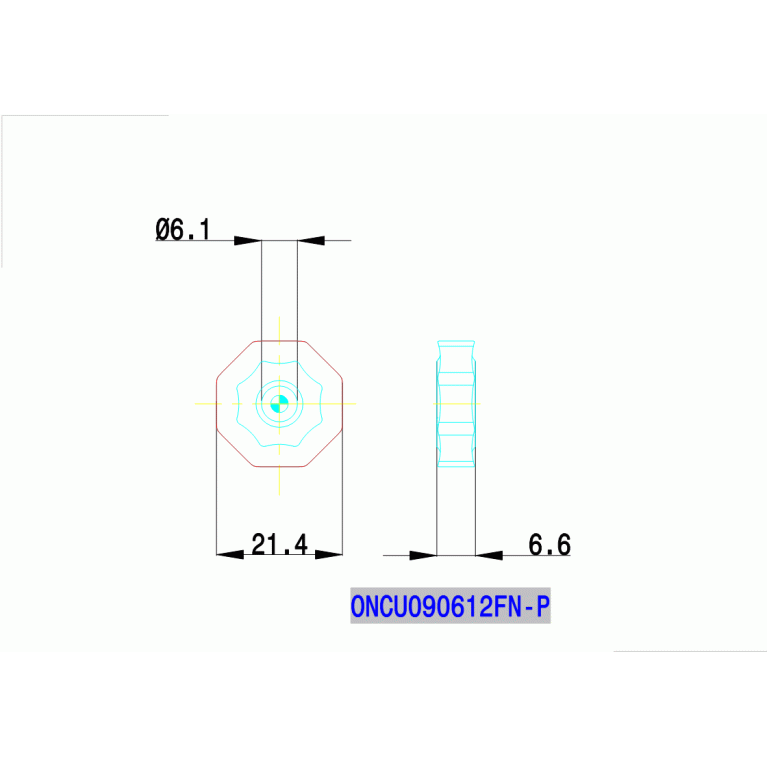

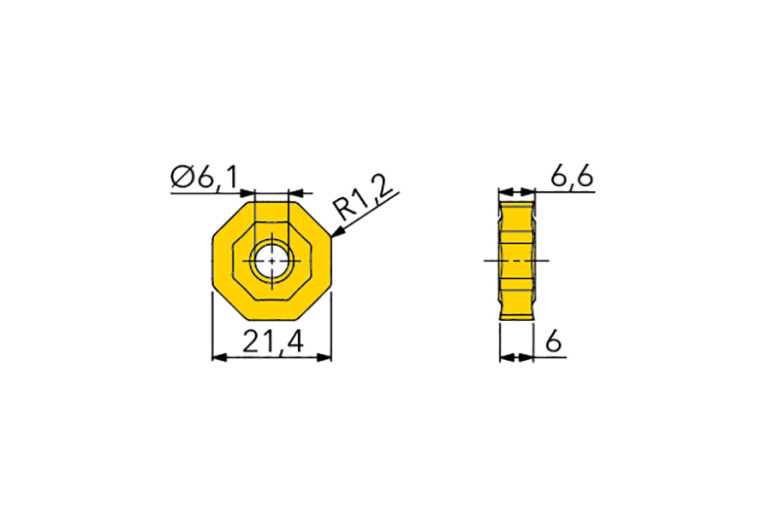

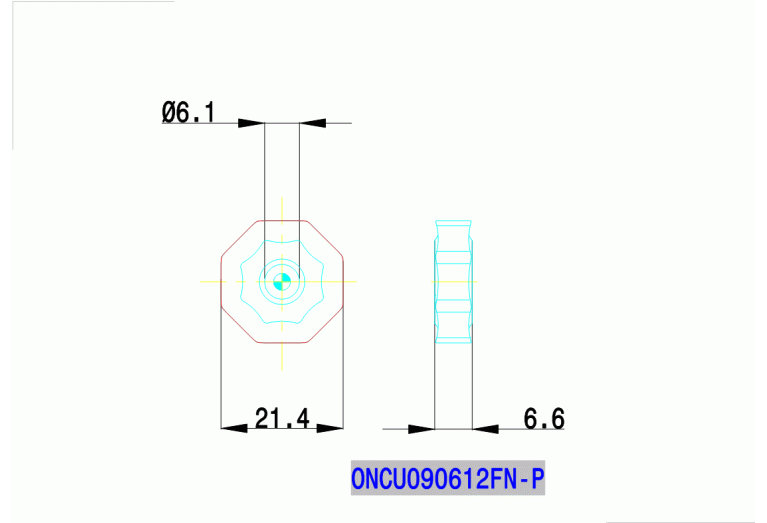

ONCU090612FN-P IN10K

Артикул: 5812795

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

2 - With chip breaker on both sides

CBMD Chip breaker manufacturers designation

COMPC Company code

IL - Ingersoll

D1 Fixing hole diameter

6.1 mm

Delivery state

LL - Stock limited

DIN

ON0906 5N

EPSR Insert included angle

135 Degree

FamilyProducts

insert, sixteen-edged, non-ferrous geometry, polished

GRD2ND Standard designation of the grade 2nd application

K10-K25

GRDMFG Grade manufacturers designation

IN10K

GRDPRIO Standard designation of the grade main application

N10-N25

IC Inscribed circle diameter

21.39 mm

ID Technical product number

5812795

IFS Insert mounting style code

5 - Special production, e.g. trough clamping

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-09 - Octogonal insert

L Cutting edge length

7.95 mm

LE Cutting edge effective length

5 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

ON0906 5N

Name Identifying order number

ONCU090612FN-P IN10K

S Insert thickness

6.21 mm

S1 Insert thickness total

6.21 mm

STDDES Standard designation

ONCU090612FN

TCINS Tolerance class insert

Working process

No working processes available
