ODHW0504ZZN-A57 WXM35
ODHW0504ZZN-A57 WXM35
Артикул:
5020972
В наличии
Характеристики

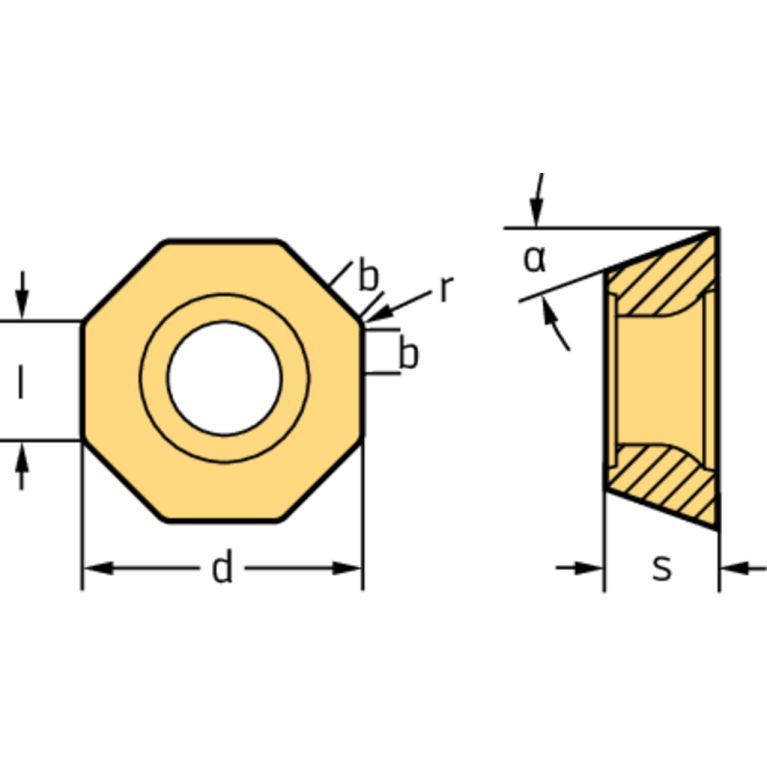

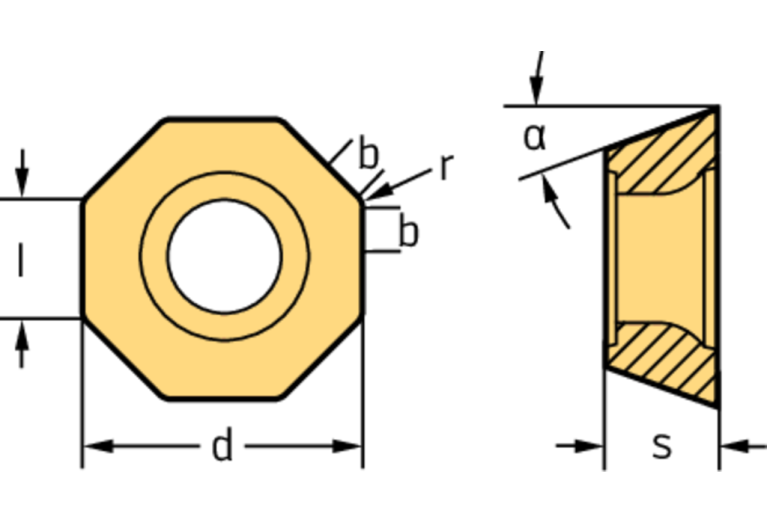

AN Clearance angle major
15 Degree
BS Wiper edge length
1.2 mm
CBMD Chip breaker manufacturers designation
A57
CECC Cutting edge condition code
S - Chamfered and rounded
COMPC Company code
W - Walter
CSP Coolant supply property
0 - Without coolant supply
D1 Fixing hole diameter
4.4 mm
Delivery state valid from
12/1/2023
DIN
W-OD0504$$3NBZZ$$
EPSR Insert included angle
135 Degree
FamilyProducts

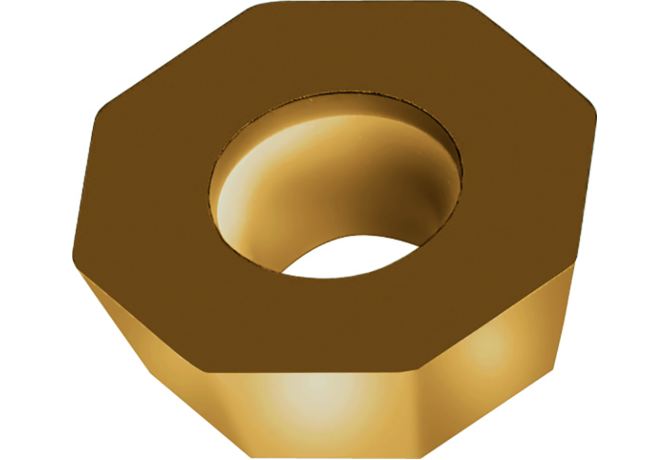

Positive octagonal ODHW
GRDMFG Grade manufacturers designation
WXM35
ID Technical product number
5020972
IFS Insert mounting style code
3 - Counter bore for screws with taper angle from 40° to 60°
IH Insert hand
N - Neutral
Interface codes
J6 / J441
ISISO ISO property
0
ISO
WR$$OD0504$$3NBZZ$$
ISYC Subclass
201-09 - Octogonal insert
L Cutting edge length
5.26 mm
LOC-03 ISO
WR$$OD0504$$3NBZZ$$
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
W-OD0504$$3NBZZ$$
Name Identifying order number
ODHW0504ZZN-A57 WXM35
NOI Insert index count
8
RE Corner radius
0.8 mm
S Insert thickness
4.76 mm
S1 Insert thickness total
4.76 mm
STDDES Standard designation
ODHW0504ZZN
TCE Tipped cutting edge code
S
TCINS Tolerance class insert
H
Working process
FPL - Face milling
WT Weight of item
0.006 kg
