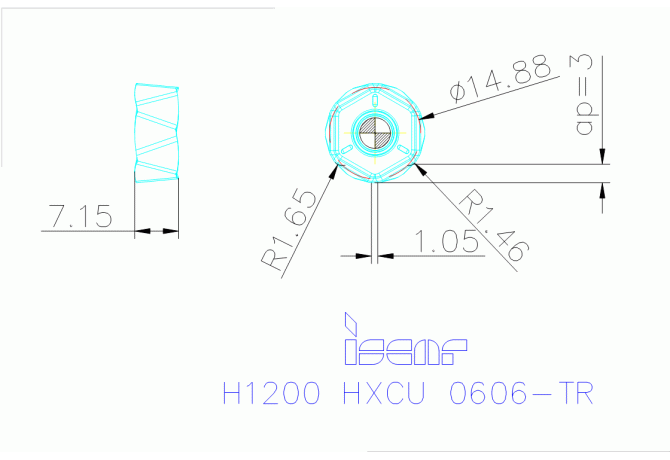

H1200 HXCU 0606-TR IC845

Артикул: 5668492

В наличии

В корзину

Описание

Характеристики

BS Wiper edge length

1.06 mm

CECC Cutting edge condition code

T - Chamfered

COATN Coating

AlTiN

COMPC Company code

IS - Iscar

DIN

IS-106295387253924

EPSR Insert included angle

120 Degree

FamilyProducts

Double-Sided Hexagonal Inserts with 12 Cutting Edges

GRDMFG Grade manufacturers designation

IC845

IC Inscribed circle diameter

14.88 mm

ID Technical product number

5668492

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 / J441

ISISO ISO property

ISO

IS$$106295387253924

ISYC Subclass

201-08 - Hexagonal insert

L Cutting edge length

6.43 mm

LOC-03 ISO

IS$$106295387253924

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

IS-106295387253924

Name Identifying order number

H1200 HXCU 0606-TR IC845

RE Corner radius

1.6 mm

S Insert thickness

7.15 mm

Working process

No working processes available

WT Weight of item

0.01 kg
