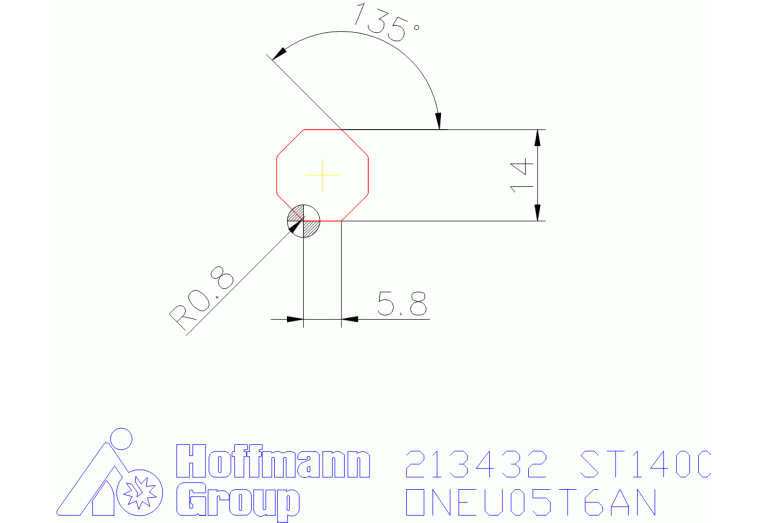

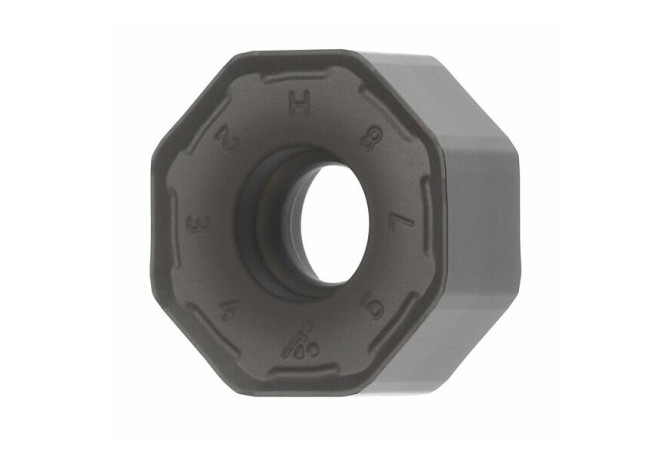

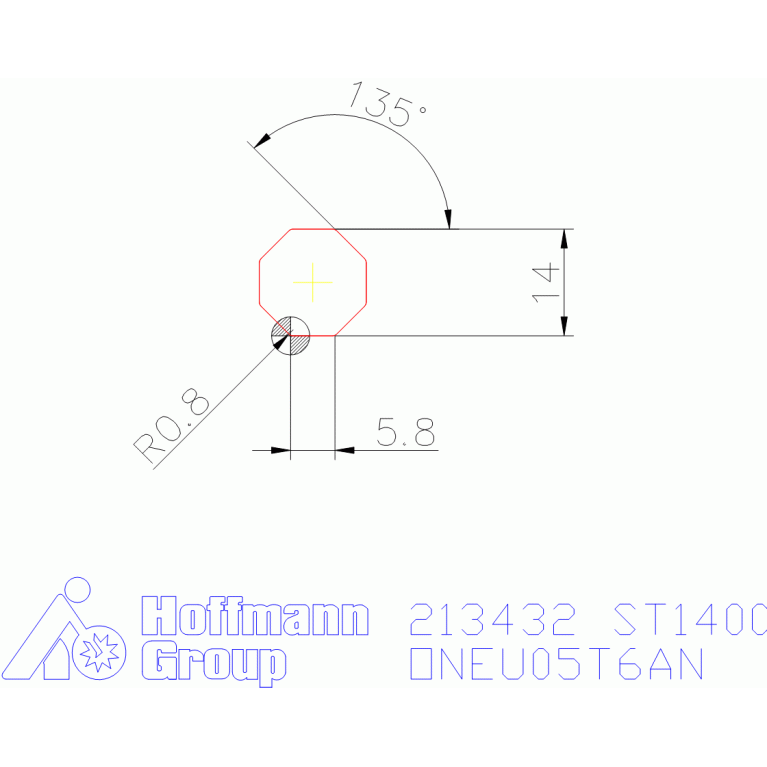

Главная Каталог продукции Toolunited 10 201-08 - Hexagonal insert 213432 ST1400

213432 ST1400

Артикул: 213432 ST1400

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

AS Clearance angle wiper edge

0 Degree

CB Chip breaker face count

2 - With chip breaker on both sides

CECC Cutting edge condition code

E - Rounded

COATN Coating

TiALN

COMPC Company code

HOG - Hoffmann Group

CSP Coolant supply property

0 - Without coolant supply

DIN

ON05T6AN3R

EPSR Insert included angle

135 Degree

FamilyProducts

ONEU 05T6 ANER

GRDMFG Grade manufacturers designation

HB7520

IC Inscribed circle diameter

14 mm

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-08 - Hexagonal insert

KRINS Cutting edge angle major

45 Degree

L Cutting edge length

3 mm

LE Cutting edge effective length

3 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

ON05T6AN3R

Name Identifying order number

213432 ST1400

RE Corner radius

0.8 mm

STDDES Standard designation

ONEU05T6ANER

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

No working processes available

WT Weight of item

0.011 kg
