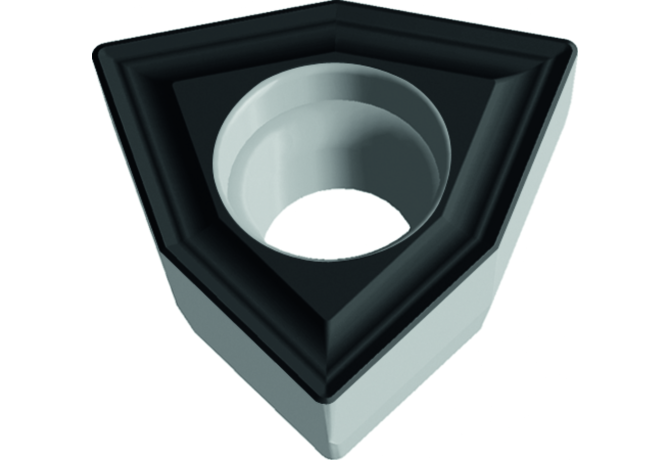

WOMX06T304-D57 WAP20

Артикул: 5033102

В наличии

В корзину

Описание

Характеристики

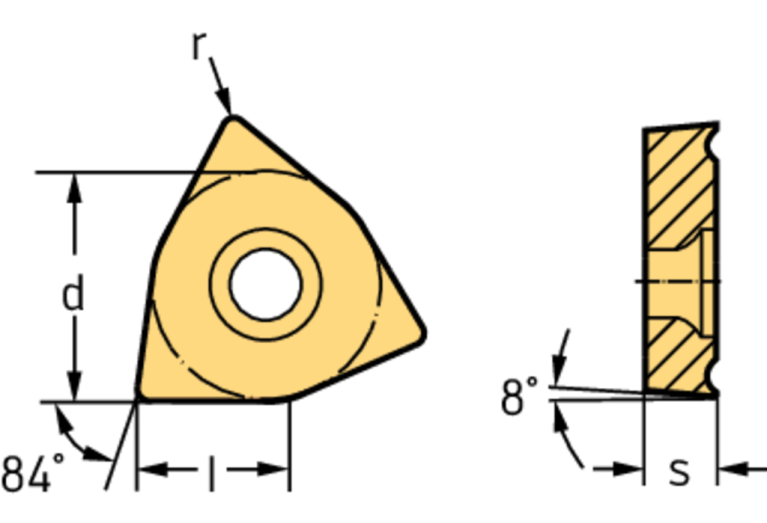

AN Clearance angle major

8 Degree

CBMD Chip breaker manufacturers designation

D57

COMPC Company code

W - Walter

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

4.07 mm

Delivery state valid from

12/1/2023

DIN

W-WO06T3$$3NB$$$$

EPSR Insert included angle

84 Degree

FamilyProducts

Trigon WOMX

GRDMFG Grade manufacturers designation

WAP20

IC Inscribed circle diameter

10 mm

ID Technical product number

5033102

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

WR$$WO06T3$$3NB$$$$

ISYC Subclass

201-07 - Trigon insert

L Cutting edge length

6.62 mm

LOC-03 ISO

WR$$WO06T3$$3NB$$$$

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

W-WO06T3$$3NB$$$$

Name Identifying order number

WOMX06T304-D57 WAP20

RE Corner radius

0.4 mm

S Insert thickness

3.8 mm

S1 Insert thickness total

3.8 mm

STDDES Standard designation

WOMX06T304

STDDESAnsi Standard designation ANSI

WOMX32.51

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

BVB - Drilling

WT Weight of item

0.005 kg
