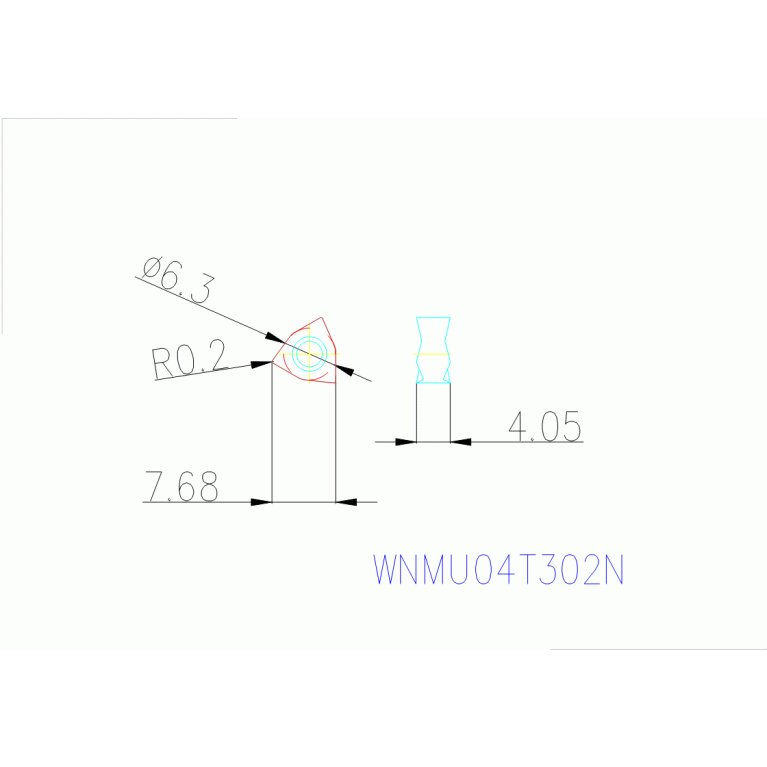

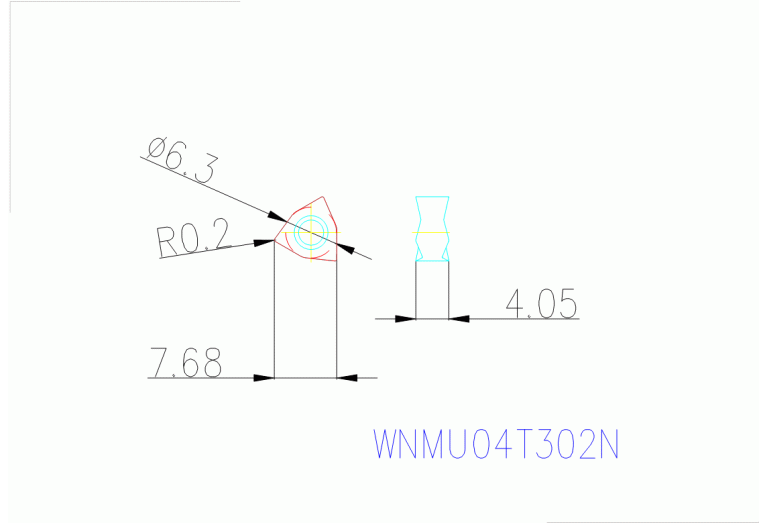

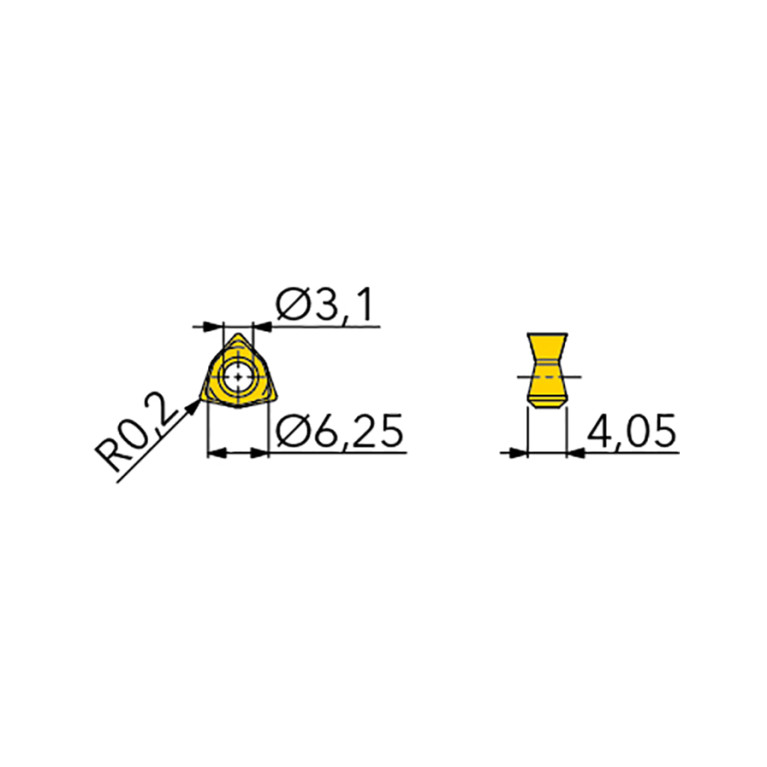

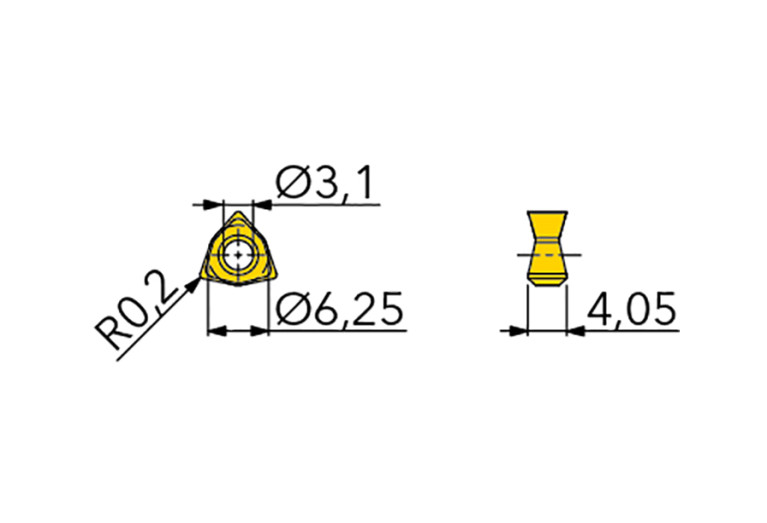

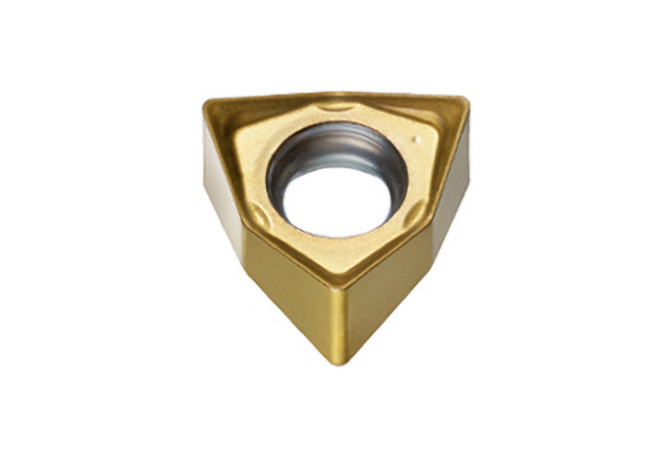

WNMU04T302N IN2035

Артикул: 5885961

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

2 - With chip breaker on both sides

COATN Coating / Покрытие

TiAIN

COMPC Company code

IL - Ingersoll

D1 Fixing hole diameter

3.1 mm

Delivery state

LL - Stock limited

DIN

WN04T3 5N

EPSR Insert included angle

83.7 Degree

FamilyProducts

insert, six-edged, positive geometry with R0,2

GRD2ND Standard designation of the grade 2nd application

M20-M40

GRD3RD Standard designation of the grade 3rd application

S20-S30

GRDMFG Grade manufacturers designation

IN2035

GRDPRIO Standard designation of the grade main application

P25-P50

IC Inscribed circle diameter

6.25 mm

ID Technical product number

5885961

IFS Insert mounting style code

5 - Special production, e.g. trough clamping

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-07 - Trigon insert

L Cutting edge length

3.65 mm

LE Cutting edge effective length

3.8 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

WN04T3 5N

Name Identifying order number

WNMU04T302N IN2035

RE Corner radius

0.2 mm

S Insert thickness

3.97 mm

S1 Insert thickness total

4.06 mm

STDDES Standard designation

WNMU04T302

TCINS Tolerance class insert

Working process

No working processes available
