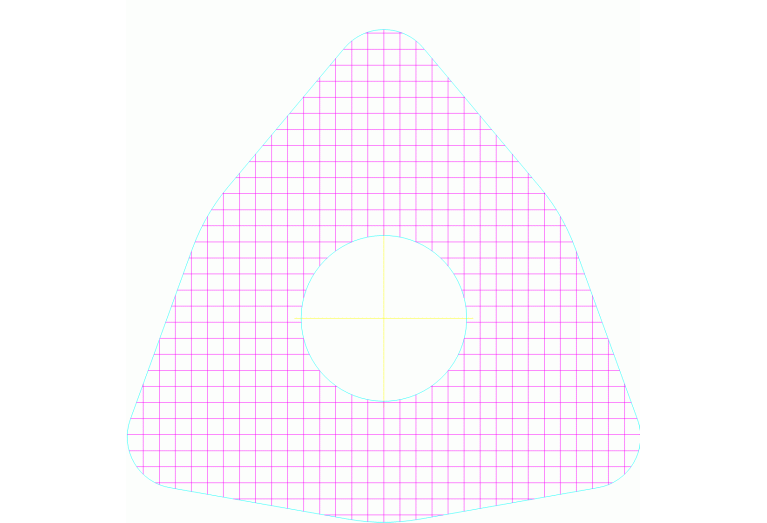

WNMG080416-NM4 WSM30
WNMG080416-NM4 WSM30
Артикул:
5357527
В наличии
Характеристики
AN Clearance angle major
0 Degree
CB Chip breaker face count
1 - With chip breaker one-side
CBMD Chip breaker manufacturers designation
NM4
COATN Coating
TiAlN+Al2O3+(ZrN)
COMPC Company code
W - Walter
CSP Coolant supply property
0 - Without coolant supply
D1 Fixing hole diameter
5.16 mm
Delivery state valid from
12/1/2023
DIN
WN0804162N
EPSR Insert included angle
80 Degree
FamilyProducts
Negative Trigon 80° WNMG
GRDMFG Grade manufacturers designation
WSM30
IC Inscribed circle diameter
12.7 mm
ID Technical product number
5357527
IFS Insert mounting style code
2 - With cylindrical bore
IH Insert hand
N - Neutral
Interface codes
J6 / J441
ISISO ISO property
1
ISO
ISO$WN0804162NB$$16
ISYC Subclass
201-07 - Trigon insert
L Cutting edge length
8.6873 mm
LOC-03 ISO
ISO$WN0804162NB$$16
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
WN0804162N
MIID Master insert identification
WNMG080416 WSM30
Name Identifying order number
WNMG080416-NM4 WSM30
NameAnsi Identifying order number inch alternative
WNMG434-NM4 WSM30
NOI Insert index count
3
RE Corner radius
1.6 mm
S Insert thickness
4.7625 mm
S1 Insert thickness total
4.7625 mm
STDDES Standard designation
WNMG080416
STDDESAnsi Standard designation ANSI
WNMG434
TCE Tipped cutting edge code
S
TCINS Tolerance class insert
M
Working process
No working processes available
WT Weight of item
0.009 kg
