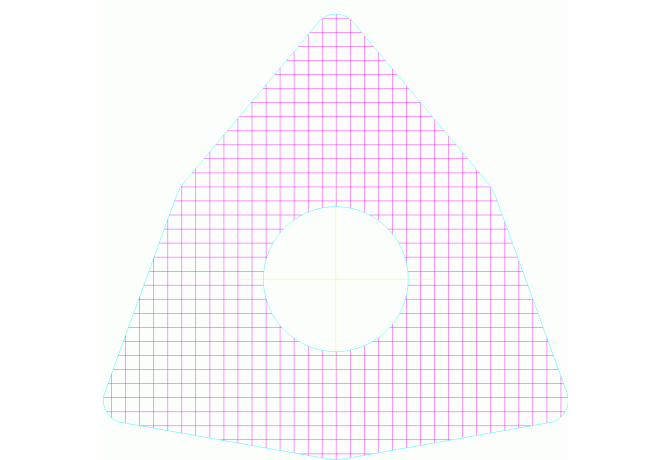

WNMG080408-NF3 WAP01
WNMG080408-NF3 WAP01
Артикул:
5041935
В наличии
Характеристики
AN Clearance angle major
0 Degree
CB Chip breaker face count
1 - With chip breaker one-side
CBMD Chip breaker manufacturers designation
NF3
COATN Coating
TiCN+Al2O3+TiN
COMPC Company code
W - Walter
CSP Coolant supply property
0 - Without coolant supply
D1 Fixing hole diameter
5.16 mm
Delivery state valid from
12/1/2023
DIN
WN0804082N
EPSR Insert included angle
80 Degree
FamilyProducts
Negative Trigon 80° WNMG
GRDMFG Grade manufacturers designation
WAP01
IC Inscribed circle diameter
12.7 mm
ID Technical product number
5041935
IFS Insert mounting style code
2 - With cylindrical bore
IH Insert hand
N - Neutral
Interface codes
J6 / J441
ISISO ISO property
1
ISO
ISO$WN0804082NB$$08
ISYC Subclass
201-07 - Trigon insert
L Cutting edge length
8.6873 mm
LOC-03 ISO
ISO$WN0804082NB$$08
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
WN0804082N
MIID Master insert identification
WNMG080408 WAP01
Name Identifying order number
WNMG080408-NF3 WAP01
NameAnsi Identifying order number inch alternative
WNMG432-NF3 WAP01
NOI Insert index count
3
RE Corner radius
0.8 mm
S Insert thickness
4.7625 mm
S1 Insert thickness total
4.7625 mm
STDDES Standard designation
WNMG080408
STDDESAnsi Standard designation ANSI
WNMG432
TCE Tipped cutting edge code
S
TCINS Tolerance class insert
M
Working process
No working processes available
WT Weight of item
0.011 kg
