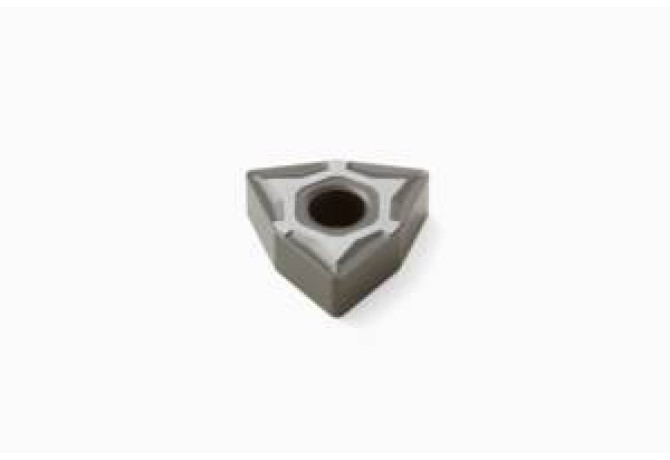

WNMG060408-M3 TP3500

Артикул: 02671515

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

2 - With chip breaker on both sides

CBMD Chip breaker manufacturers designation

COMPC Company code

SO - SECO Tools

Delivery state valid from

4/24/2018

DIN

WN0604082N

EPSR Insert included angle

80 Degree

FamilyProducts

WNMG060408-M3 TP3500

GRDMFG Grade manufacturers designation

TP3500

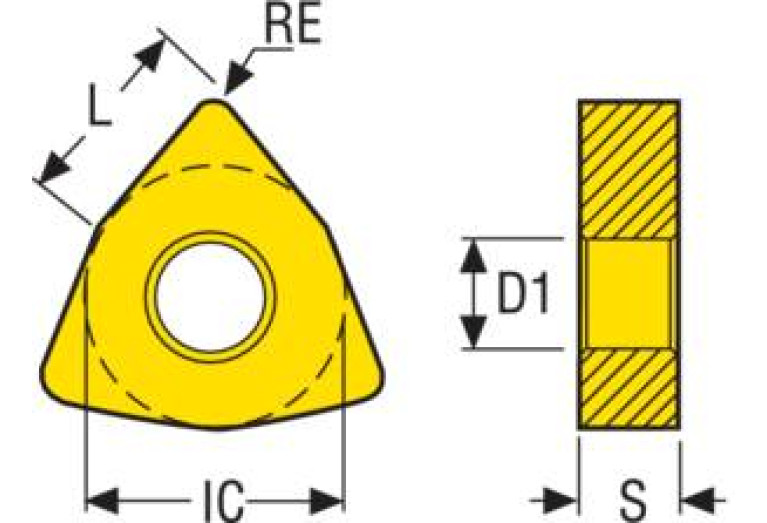

IC Inscribed circle diameter

9.525 mm

ID Technical product number

02671515

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

ISO$WN0604082NB$$08

ISYC Subclass

201-07 - Trigon insert

L Cutting edge length

6.5 mm

LE Cutting edge effective length

6.2 mm

LOC-03 ISO

ISO$WN0604082NB$$08

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

WN0604082N

MIID Master insert identification

WNMG060408 TP3500

Name Identifying order number

WNMG060408-M3 TP3500

NameAnsi Identifying order number inch alternative

WNMG332-M3 TP3500

NOI Insert index count

RE Corner radius

0.8 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

WNMG060408

STDDESAnsi Standard designation ANSI

WNMG332

TCINS Tolerance class insert

Working process

No working processes available

WT Weight of item

0.005 kg
