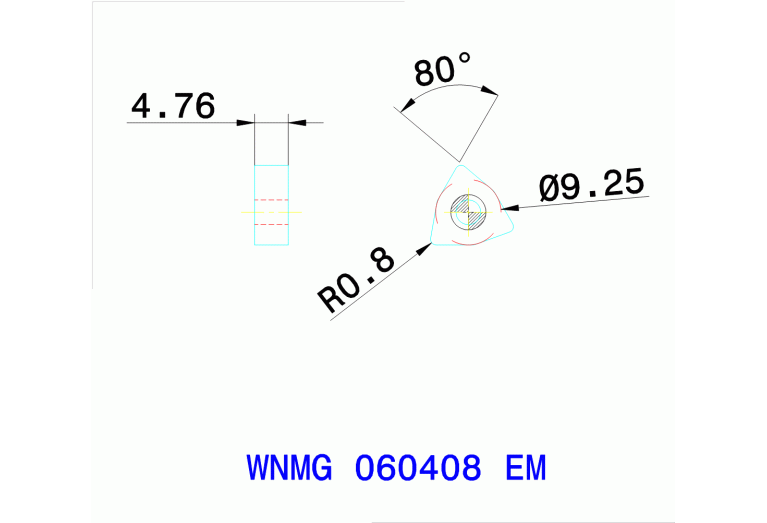

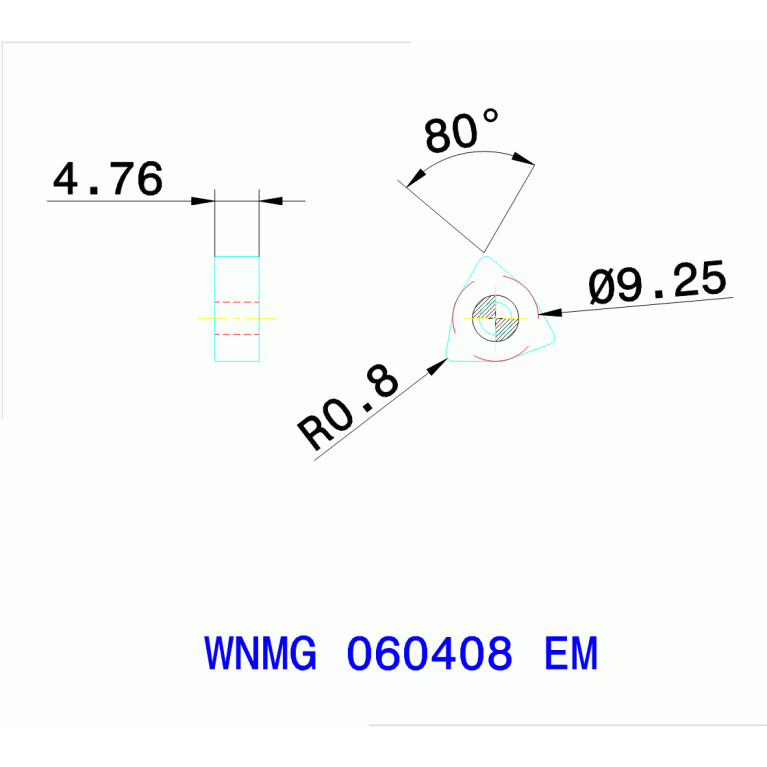

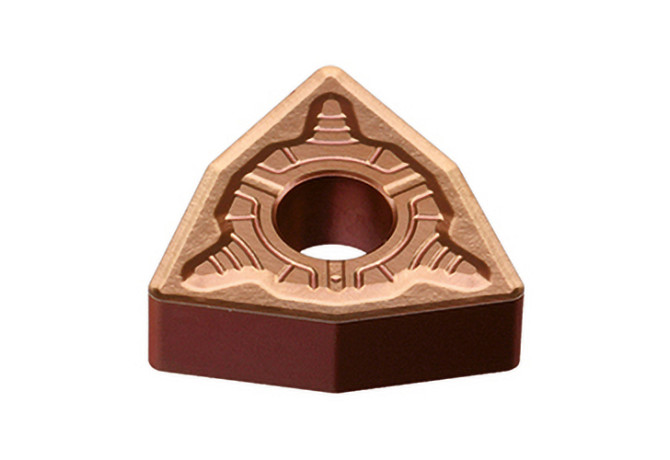

WNMG 060408 EM TT8080

Артикул: 6183671

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

0 - Without chip breaker

COATN Coating

TiN

COMPC Company code

IL - Ingersoll

Delivery state

LL - Stock limited

DIN

WN0604082N

EPSR Insert included angle

80 Degree

FamilyProducts

insert, Negative 80° Trigon inserts for medium roughing / stainless steel

GRD2ND Standard designation of the grade 2nd application

M30-M50

GRD3RD Standard designation of the grade 3rd application

S30-S50

GRDMFG Grade manufacturers designation

TT8080

GRDPRIO Standard designation of the grade main application

P30-P50

IC Inscribed circle diameter

9.52 mm

ID Technical product number

6183671

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-07 - Trigon insert

L Cutting edge length

6.1 mm

LE Cutting edge effective length

2 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

WN0604082N

Name Identifying order number

WNMG 060408 EM TT8080

RE Corner radius

0.8 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

WNMG060408

STDDESAnsi Standard designation ANSI

WNMG332

TCINS Tolerance class insert

Working process

No working processes available
