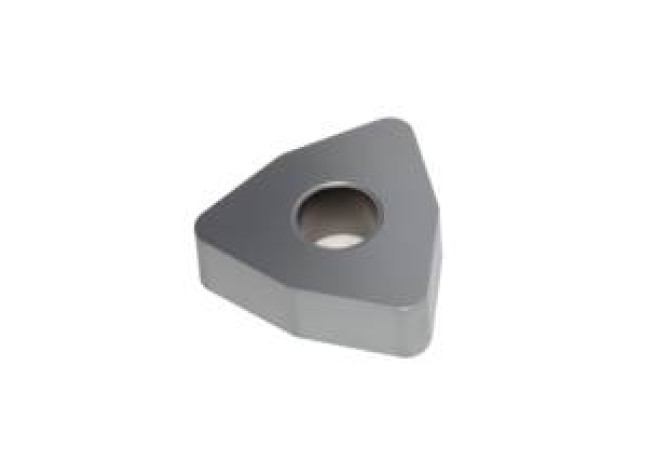

Главная Каталог продукции Toolunited 10 201-07 - Trigon insert WNMA080416 TK0501

WNMA080416 TK0501

Артикул: 03064404

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

0 - Without chip breaker

COMPC Company code

SO - SECO Tools

Delivery state valid from

4/24/2018

DIN

WN0804162N

EPSR Insert included angle

80 Degree

FamilyProducts

WNMA080416 TK0501

GRDMFG Grade manufacturers designation

TK0501

IC Inscribed circle diameter

12.7 mm

ID Technical product number

03064404

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-07 - Trigon insert

L Cutting edge length

8.7 mm

LE Cutting edge effective length

7.1 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

WN0804162N

MIID Master insert identification

WNMA080416 TK0501

Name Identifying order number

WNMA080416 TK0501

NameAnsi Identifying order number inch alternative

WNMA434 TK0501

NOI Insert index count

RE Corner radius

1.6 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

WNMA080416

STDDESAnsi Standard designation ANSI

WNMA434

TCINS Tolerance class insert

Working process

No working processes available

WT Weight of item

0.01 kg
