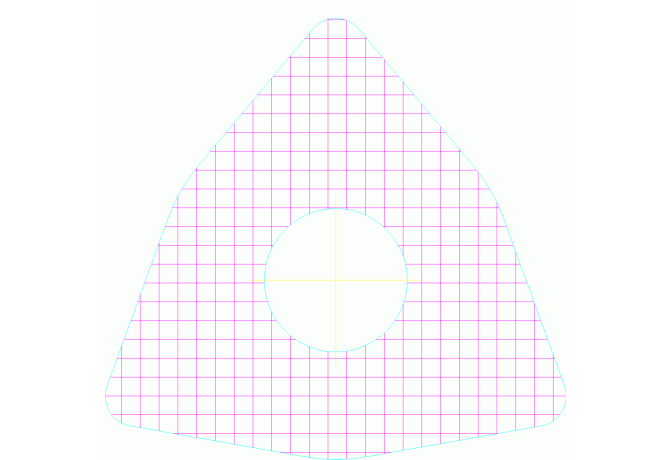

WNMA060408 WAK20
WNMA060408 WAK20
Артикул:
5035409
В наличии
Характеристики
AN Clearance angle major
0 Degree
CB Chip breaker face count
1 - With chip breaker one-side
CBMD Chip breaker manufacturers designation
..MA
COMPC Company code
W - Walter
CSP Coolant supply property
0 - Without coolant supply
D1 Fixing hole diameter
3.81 mm
Delivery state valid from
12/1/2023
DIN
WN0604082N
EPSR Insert included angle
80 Degree
FamilyProducts
Negative Trigon 80° WNMA
GRDMFG Grade manufacturers designation
WAK20
IC Inscribed circle diameter
9.525 mm
ID Technical product number
5035409
IFS Insert mounting style code
2 - With cylindrical bore
IH Insert hand
N - Neutral
Interface codes
J6 / J441
ISISO ISO property
1
ISO
ISO$WN0604082NB$$08
ISYC Subclass
201-07 - Trigon insert
L Cutting edge length
6.5155 mm
LOC-03 ISO
ISO$WN0604082NB$$08
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
WN0604082N
MIID Master insert identification
WNMA060408 WAK20
Name Identifying order number
WNMA060408 WAK20
NameAnsi Identifying order number inch alternative
WNMA332 WAK20
NOI Insert index count
3
RE Corner radius
0.8 mm
S Insert thickness
4.7625 mm
S1 Insert thickness total
4.7625 mm
STDDES Standard designation
WNMA060408
STDDESAnsi Standard designation ANSI
WNMA332
TCE Tipped cutting edge code
S
TCINS Tolerance class insert
M
Working process
No working processes available
WT Weight of item
0.007 kg
