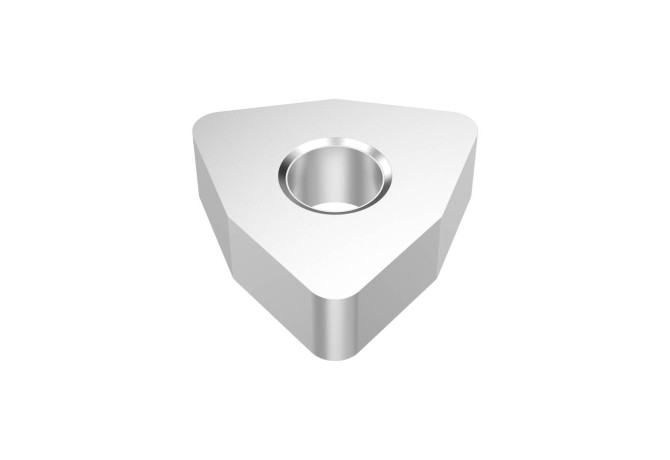

WNMA060408 TK0501
WNMA060408 TK0501
Артикул:
03064401
В наличии
Характеристики
AN Clearance angle major
0 Degree
CB Chip breaker face count
0 - Without chip breaker
COMPC Company code
SO - SECO Tools
CSP Coolant supply property
0 - Without coolant supply

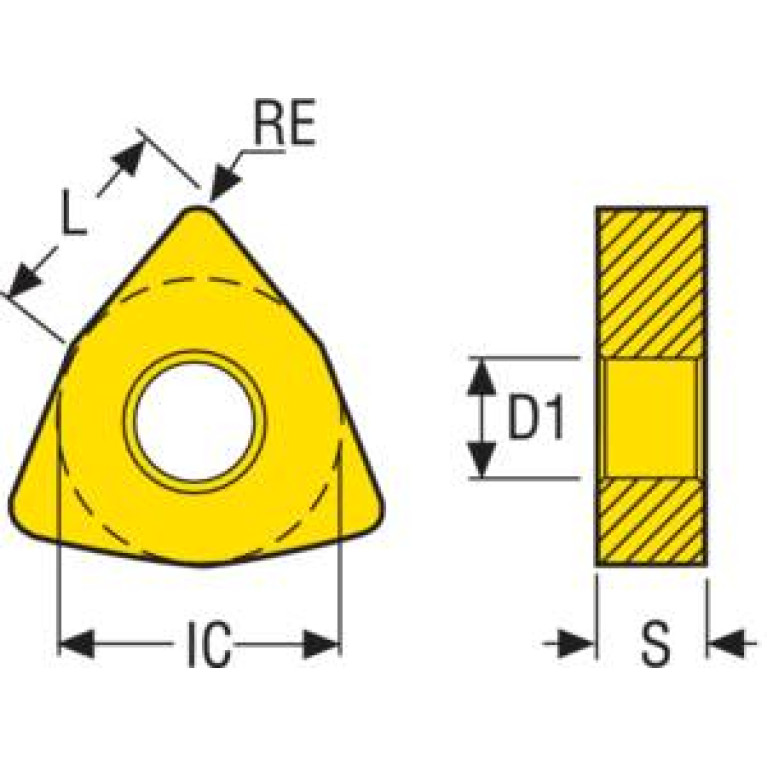

D1 Fixing hole diameter
3.81 mm
Delivery state valid from
12/1/2023
DIN
SO-WN0604 2N
EPSR Insert included angle
80 Degree
FamilyProducts
WNMA060408 TK0501
GRDMFG Grade manufacturers designation
TK0501
IC Inscribed circle diameter
9.525 mm
ID Technical product number
03064401
IFS Insert mounting style code
2 - With cylindrical bore
IH Insert hand
N - Neutral
Interface codes
J6 /
ISISO ISO property
1
ISYC Subclass
201-07 - Trigon insert
L Cutting edge length
6.515 mm
LE Cutting edge effective length
5.8 mm
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
SO-WN0604 2N
MIID Master insert identification
WNMA060408 TK0501
Name Identifying order number
WNMA060408 TK0501
RE Corner radius
0.8 mm
S Insert thickness
4.76 mm
S1 Insert thickness total
4.76 mm
STDDES Standard designation
WNMA060408
STDDESAnsi Standard designation ANSI
WNMA332
TCINS Tolerance class insert
M
Working process
No working processes available
