Главная Каталог продукции Toolunited 10 201-07 - Trigon insert WNGU130608FR-P IN10K

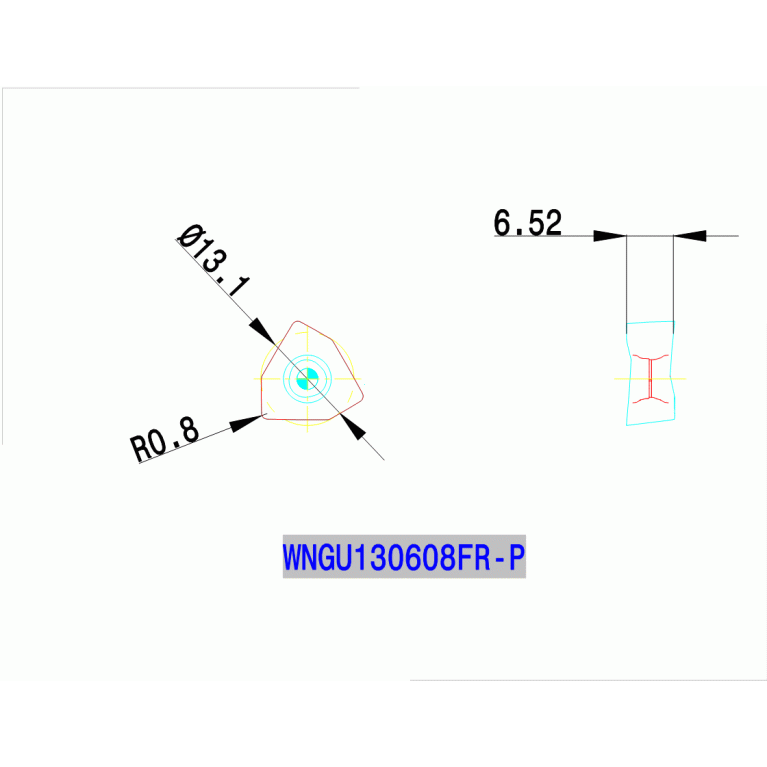

WNGU130608FR-P IN10K

Артикул: 5811318

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

-7 Degree

CB Chip breaker face count

2 - With chip breaker on both sides

CBMD Chip breaker manufacturers designation

COMPC Company code

IL - Ingersoll

D1 Fixing hole diameter

5 mm

Delivery state

LL - Stock limited

DIN

WN1306 5N

EPSR Insert included angle

90 Degree

FamilyProducts

insert,

GRD2ND Standard designation of the grade 2nd application

K10-K25

GRDMFG Grade manufacturers designation

IN10K

GRDPRIO Standard designation of the grade main application

N10-N25

IC Inscribed circle diameter

13.05 mm

ID Technical product number

5811318

IFS Insert mounting style code

5 - Special production, e.g. trough clamping

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-07 - Trigon insert

L Cutting edge length

8.18 mm

LE Cutting edge effective length

9.2 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

WN1306 5N

Name Identifying order number

WNGU130608FR-P IN10K

RE Corner radius

0.8 mm

S Insert thickness

6.75 mm

S1 Insert thickness total

6.75 mm

STDDES Standard designation

WNGU130608

STDDESAnsi Standard designation ANSI

WNGU642

TCINS Tolerance class insert

Working process

No working processes available
