WNCU04T302FN-P IN10K

Артикул: 5885178

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

2 - With chip breaker on both sides

CBMD Chip breaker manufacturers designation

COMPC Company code

IL - Ingersoll

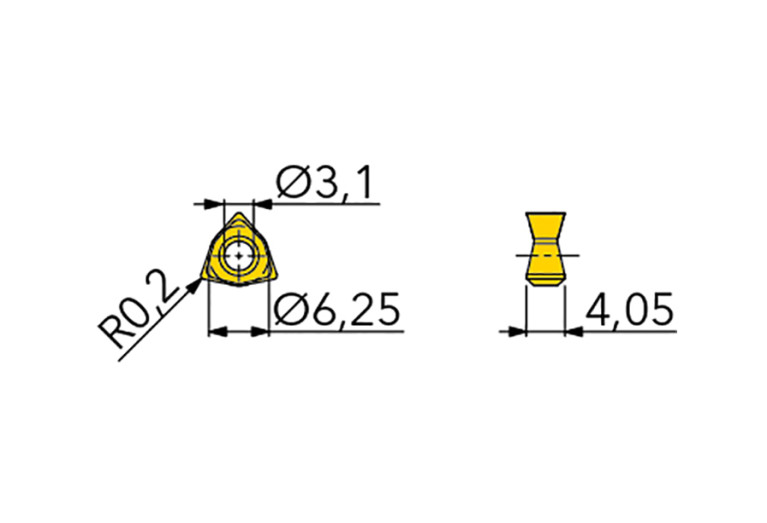

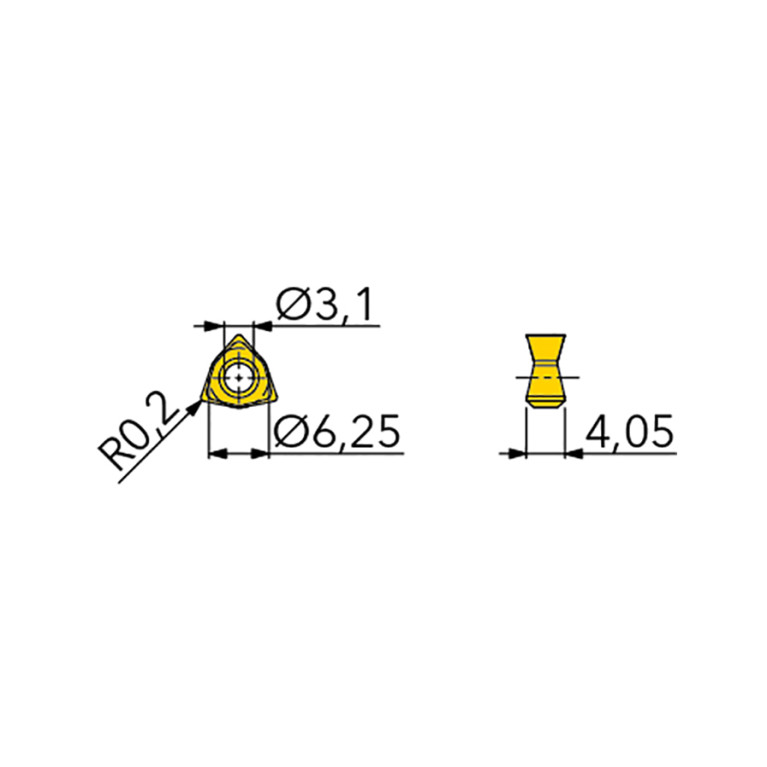

D1 Fixing hole diameter

3.1 mm

Delivery state

LL - Stock limited

DIN

WN04T3 5N

EPSR Insert included angle

83.7 Degree

FamilyProducts

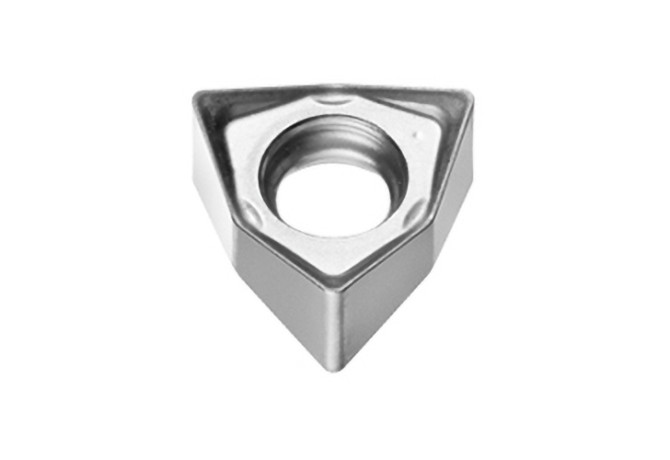

insert, six-edged, positive geometry with R0,2

GRD2ND Standard designation of the grade 2nd application

K10-K25

GRDMFG Grade manufacturers designation

IN10K

GRDPRIO Standard designation of the grade main application

N10-N25

IC Inscribed circle diameter

6.25 mm

ID Technical product number

5885178

IFS Insert mounting style code

5 - Special production, e.g. trough clamping

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-07 - Trigon insert

L Cutting edge length

3.65 mm

LE Cutting edge effective length

3.8 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

WN04T3 5N

Name Identifying order number

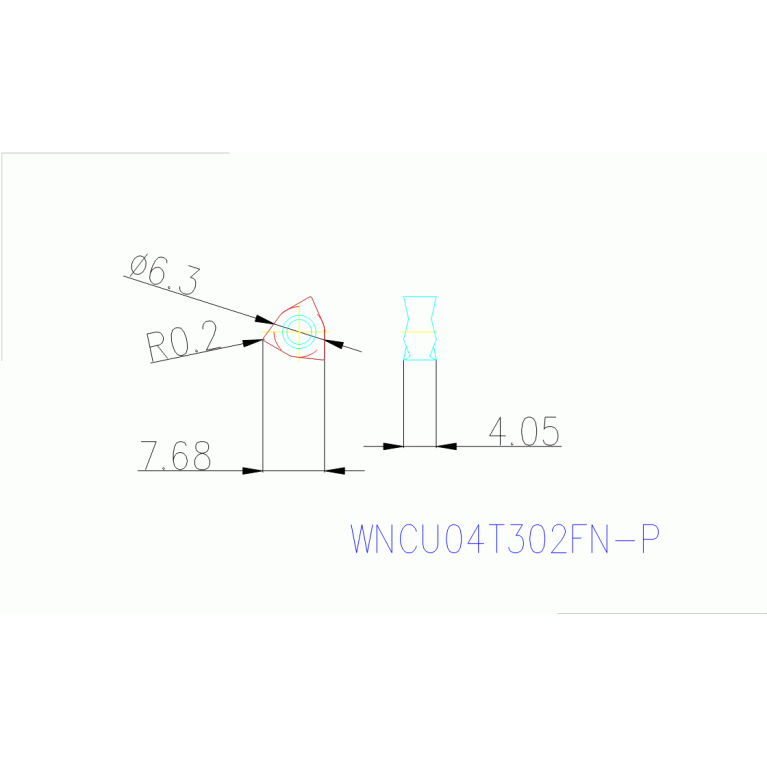

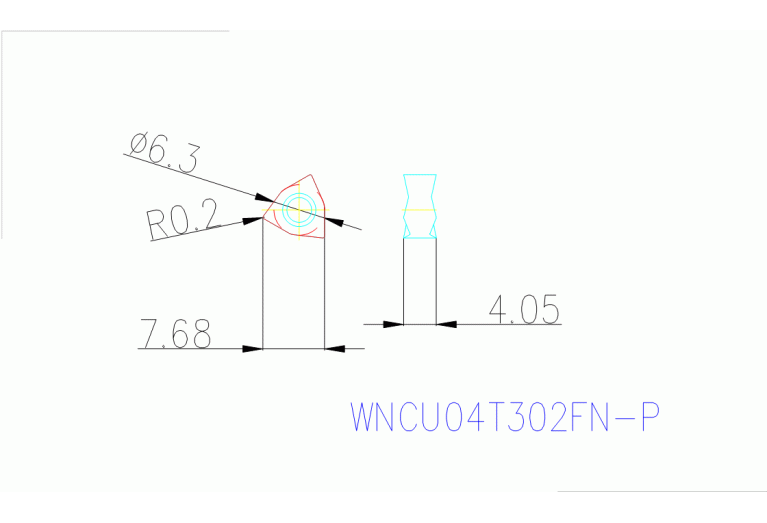

WNCU04T302FN-P IN10K

RE Corner radius

0.2 mm

S Insert thickness

3.97 mm

S1 Insert thickness total

4.05 mm

STDDES Standard designation

WNCU04T302

TCINS Tolerance class insert

Working process

No working processes available
