WCMT080412-PM5 WSM20
WCMT080412-PM5 WSM20
Артикул:
5615010
В наличии
Характеристики
AN Clearance angle major
7 Degree
CB Chip breaker face count
1 - With chip breaker one-side
CBMD Chip breaker manufacturers designation
PM5
COATN Coating
TiAlN+Al2O3+(ZrN)
COMPC Company code
W - Walter
CSP Coolant supply property
0 - Without coolant supply
D1 Fixing hole diameter
5.5 mm
Delivery state valid from
12/1/2023
DIN
WC0804123N
EPSR Insert included angle
80 Degree
FamilyProducts

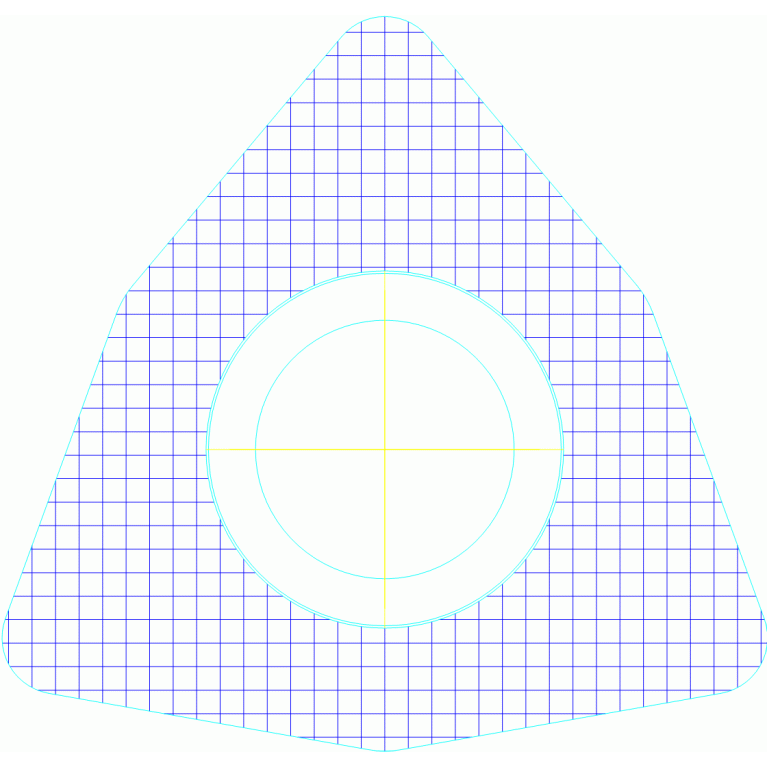

Positive Trigon 80° WCMT
GRDMFG Grade manufacturers designation
WSM20
IC Inscribed circle diameter
12.7 mm
ID Technical product number
5615010
IFS Insert mounting style code
3 - Counter bore for screws with taper angle from 40° to 60°
IH Insert hand
N - Neutral
Interface codes
J6 / J441
ISISO ISO property
1
ISO
ISO$WC0804123NB$$12
ISYC Subclass
201-07 - Trigon insert
L Cutting edge length
8.6873 mm
LOC-03 ISO
ISO$WC0804123NB$$12
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
WC0804123N
MIID Master insert identification
WCMT080412 WSM20
Name Identifying order number
WCMT080412-PM5 WSM20
NameAnsi Identifying order number inch alternative
WCMT433-PM5 WSM20
NOI Insert index count
3
RE Corner radius
1.2 mm
S Insert thickness
4.7625 mm
S1 Insert thickness total
4.7625 mm
STDDES Standard designation
WCMT080412
STDDESAnsi Standard designation ANSI
WCMT433
TCE Tipped cutting edge code
S
TCINS Tolerance class insert
M
Working process
No working processes available
WT Weight of item
0.008 kg
