Главная Каталог продукции Toolunited 10 201-07 - Trigon insert WCMT080404-PF4 WSM20

WCMT080404-PF4 WSM20

Артикул: 5619922

В наличии

В корзину

Описание

Характеристики

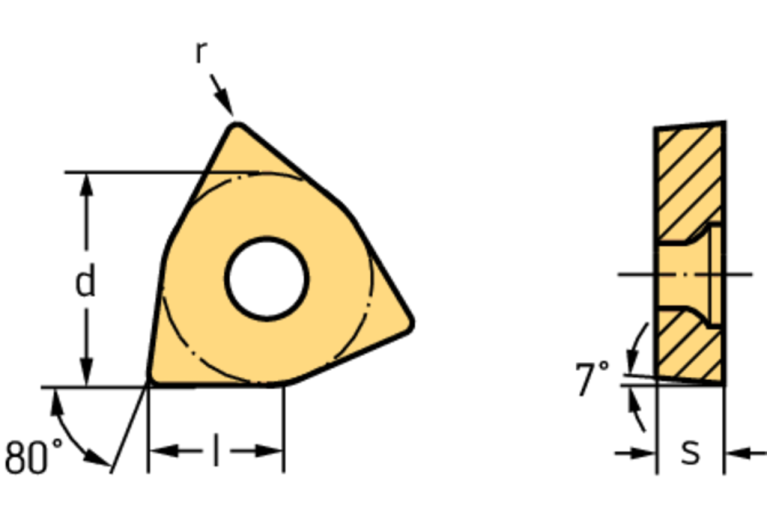

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

PF4

COATN Coating

TiAlN+Al2O3+(ZrN)

COMPC Company code

W - Walter

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

5.5 mm

Delivery state valid from

12/1/2023

DIN

WC0804043N

EPSR Insert included angle

80 Degree

FamilyProducts

Positive Trigon 80° WCMT

GRDMFG Grade manufacturers designation

WSM20

IC Inscribed circle diameter

12.7 mm

ID Technical product number

5619922

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

ISO$WC0804043NB$$04

ISYC Subclass

201-07 - Trigon insert

L Cutting edge length

8.6873 mm

LOC-03 ISO

ISO$WC0804043NB$$04

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

WC0804043N

MIID Master insert identification

WCMT080404 WSM20

Name Identifying order number

WCMT080404-PF4 WSM20

NameAnsi Identifying order number inch alternative

WCMT431-PF4 WSM20

NOI Insert index count

RE Corner radius

0.4 mm

S Insert thickness

4.7625 mm

S1 Insert thickness total

4.7625 mm

STDDES Standard designation

WCMT080404

STDDESAnsi Standard designation ANSI

WCMT431

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

No working processes available

WT Weight of item

0.008 kg
