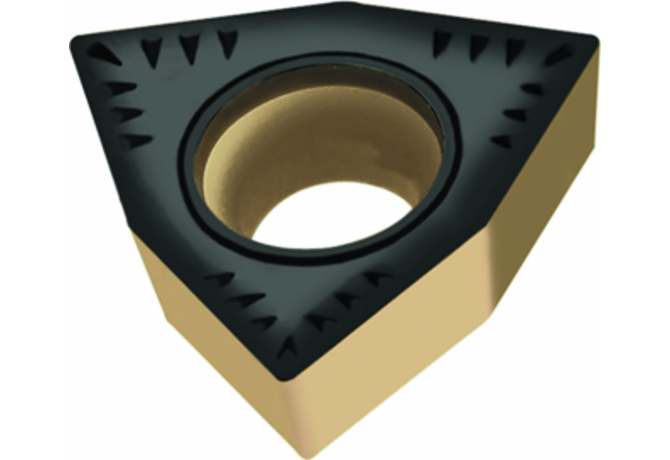

WCMT06T308-PM5 WAK20
WCMT06T308-PM5 WAK20
Артикул:
5025061
В наличии
Характеристики

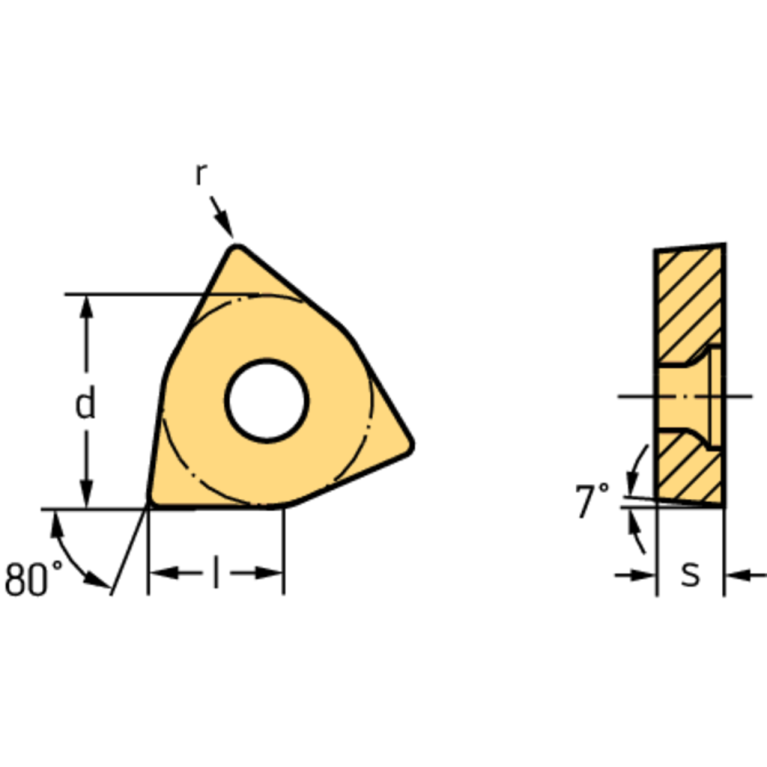

AN Clearance angle major
7 Degree
CB Chip breaker face count
1 - With chip breaker one-side
CBMD Chip breaker manufacturers designation
PM5
COMPC Company code
W - Walter
CSP Coolant supply property
0 - Without coolant supply
D1 Fixing hole diameter
4.4 mm
Delivery state valid from
12/1/2023
DIN
WC06T3083N
EPSR Insert included angle
80 Degree
FamilyProducts
Positive Trigon 80° WCMT
GRDMFG Grade manufacturers designation
WAK20
IC Inscribed circle diameter
9.525 mm
ID Technical product number
5025061
IFS Insert mounting style code
3 - Counter bore for screws with taper angle from 40° to 60°
IH Insert hand
N - Neutral
Interface codes
J6 / J441
ISISO ISO property
1
ISO
ISO$WC06T3083NB$$08
ISYC Subclass
201-07 - Trigon insert
L Cutting edge length
6.5155 mm
LOC-03 ISO
ISO$WC06T3083NB$$08
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
WC06T3083N
MIID Master insert identification
WCMT06T308 WAK20
Name Identifying order number
WCMT06T308-PM5 WAK20
NameAnsi Identifying order number inch alternative
WCMT3(2.5)2-PM5 WAK20
NOI Insert index count
3
RE Corner radius
0.8 mm
S Insert thickness
3.96875 mm
S1 Insert thickness total
3.96875 mm
STDDES Standard designation
WCMT06T308
STDDESAnsi Standard designation ANSI
WCMT32.52
TCE Tipped cutting edge code
S
TCINS Tolerance class insert
M
Working process
No working processes available
WT Weight of item
0.004 kg
