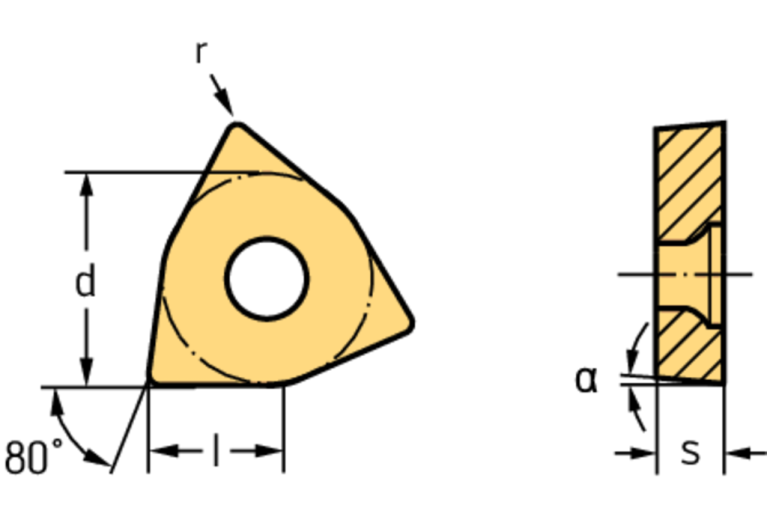

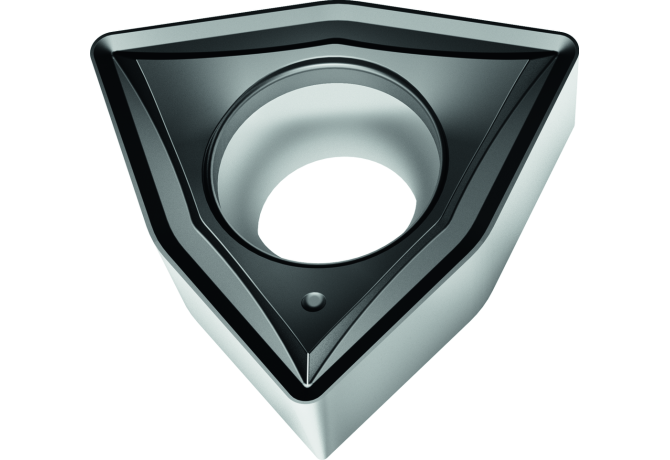

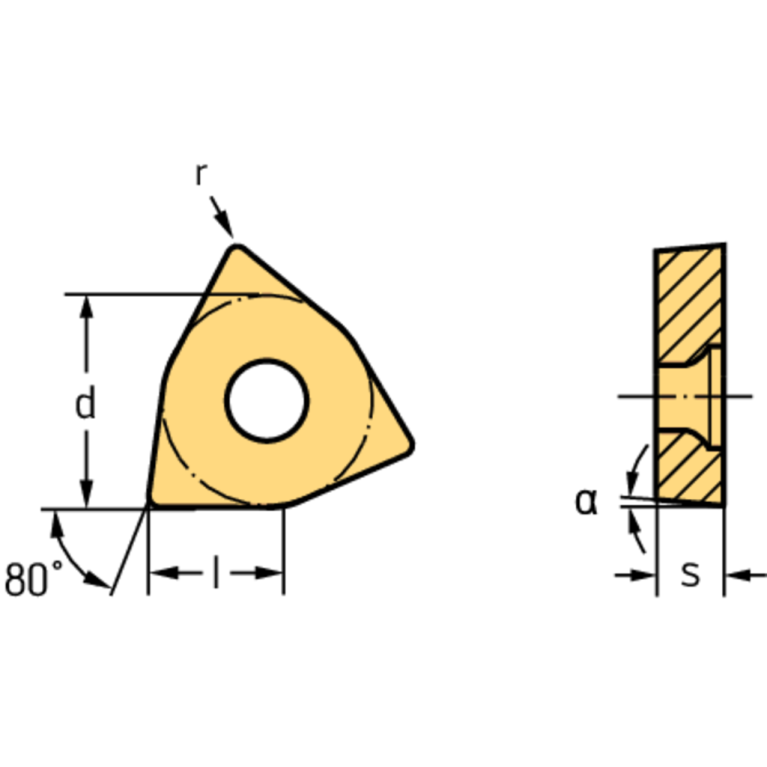

WCMT06T308-E47 WSM30

Артикул: 6118069

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CBMD Chip breaker manufacturers designation

E47

COATN Coating

TiAlN+Al2O3+(ZrN)

COMPC Company code

W - Walter

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

4.5 mm

Delivery state valid from

12/1/2023

DIN

W-WC06T3$$3RB$$$$

EPSR Insert included angle

80 Degree

FamilyProducts

Positive Trigon 80° WCMT

GRDMFG Grade manufacturers designation

WSM30

IC Inscribed circle diameter

9.525 mm

ID Technical product number

6118069

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 / J441

ISISO ISO property

ISO

WR$$WC06T3$$3RB$$$$

ISYC Subclass

201-07 - Trigon insert

L Cutting edge length

6.5 mm

LOC-03 ISO

WR$$WC06T3$$3RB$$$$

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

W-WC06T3$$3RB$$$$

Name Identifying order number

WCMT06T308-E47 WSM30

NameAnsi Identifying order number inch alternative

WCMT3(2.5)2-E47 WSM30

RE Corner radius

0.8 mm

S Insert thickness

3.97 mm

S1 Insert thickness total

3.97 mm

STDDES Standard designation

WCMT06T308

STDDESAnsi Standard designation ANSI

WCMT32.52

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

BVB - Drilling

WT Weight of item

0.004 kg
