Главная Каталог продукции Toolunited 10 201-07 - Trigon insert WCMT06T304-PM5 WPP10

WCMT06T304-PM5 WPP10

Артикул: 5199800

В наличии

В корзину

Описание

Характеристики

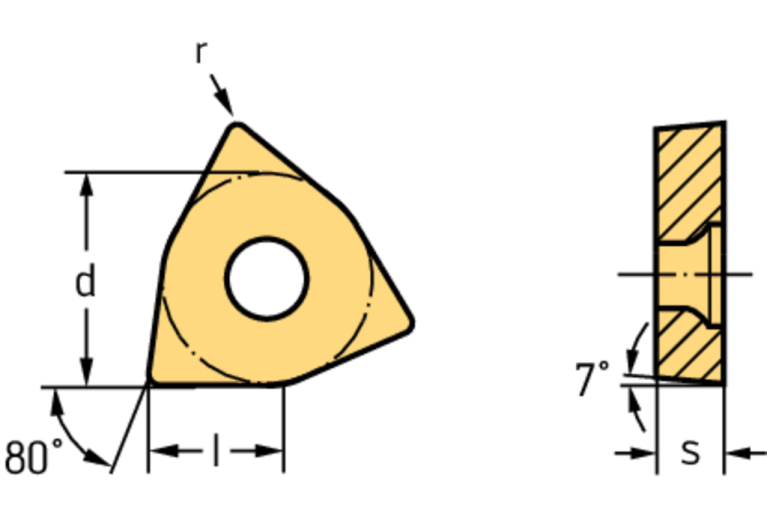

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

PM5

COATN Coating

TiCN+Al2O3+(TiN)

COMPC Company code

W - Walter

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

4.4 mm

Delivery state valid from

12/1/2023

DIN

WC06T3043N

EPSR Insert included angle

80 Degree

FamilyProducts

Positive Trigon 80° WCMT

GRDMFG Grade manufacturers designation

WPP10

IC Inscribed circle diameter

9.525 mm

ID Technical product number

5199800

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

ISO$WC06T3043NB$$04

ISYC Subclass

201-07 - Trigon insert

L Cutting edge length

6.5155 mm

LOC-03 ISO

ISO$WC06T3043NB$$04

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

WC06T3043N

MIID Master insert identification

WCMT06T304 WPP10

Name Identifying order number

WCMT06T304-PM5 WPP10

NameAnsi Identifying order number inch alternative

WCMT3(2.5)1-PM5 WPP10

NOI Insert index count

RE Corner radius

0.4 mm

S Insert thickness

3.96875 mm

S1 Insert thickness total

3.96875 mm

STDDES Standard designation

WCMT06T304

STDDESAnsi Standard designation ANSI

WCMT32.51

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

No working processes available

WT Weight of item

0.004 kg
