Главная Каталог продукции Toolunited 10 201-07 - Trigon insert WCMT040204-E47 WPP20

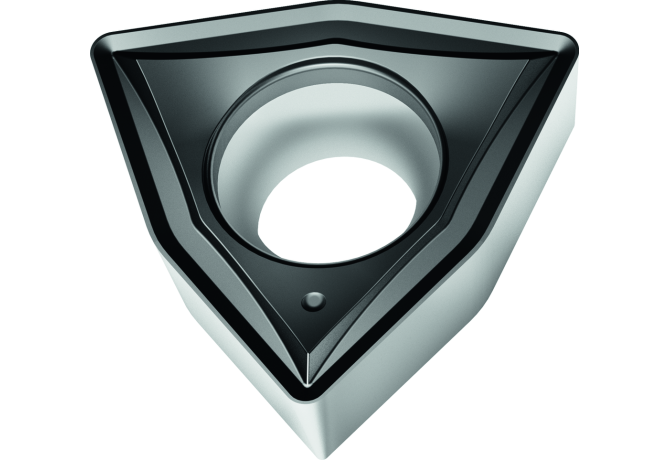

WCMT040204-E47 WPP20

Артикул: 6108884

В наличии

В корзину

Описание

Характеристики

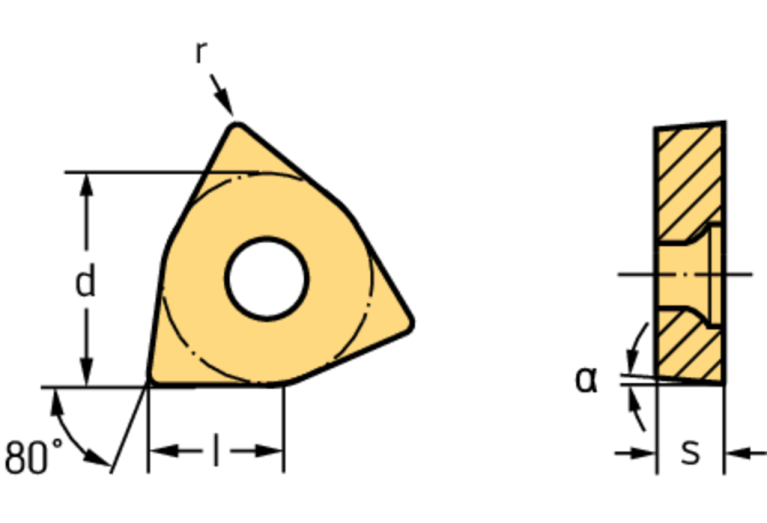

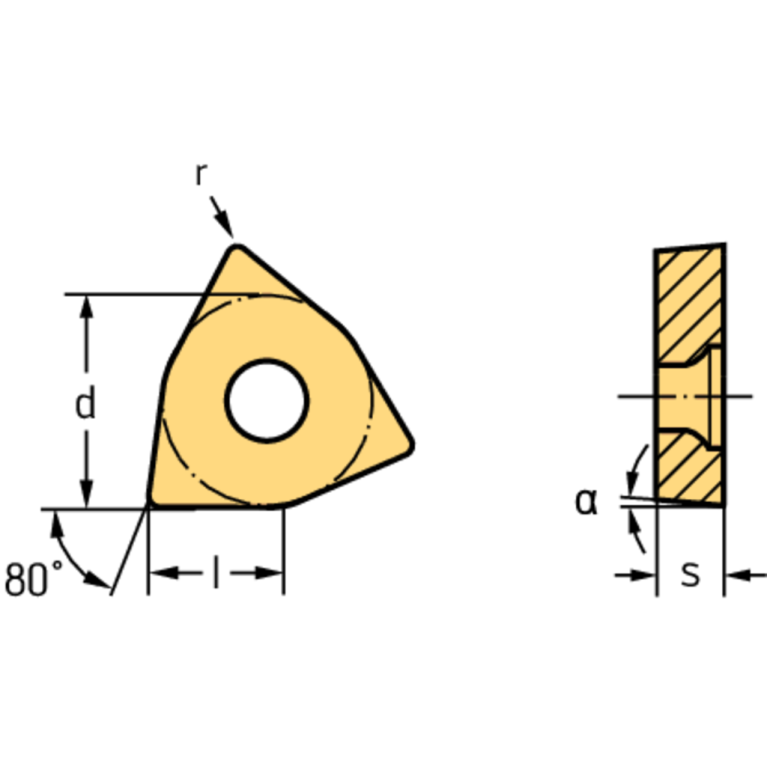

AN Clearance angle major

7 Degree

CBMD Chip breaker manufacturers designation

E47

COATN Coating

TiCN+Al2O3+(TiN)

COMPC Company code

W - Walter

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

2.8 mm

Delivery state valid from

12/1/2023

DIN

W-WC0402$$3RB$$$$

EPSR Insert included angle

80 Degree

FamilyProducts

Positive Trigon 80° WCMT

GRDMFG Grade manufacturers designation

WPP20

IC Inscribed circle diameter

6.35 mm

ID Technical product number

6108884

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 / J441

ISISO ISO property

ISO

WR$$WC0402$$3RB$$$$

ISYC Subclass

201-07 - Trigon insert

L Cutting edge length

4.3 mm

LOC-03 ISO

WR$$WC0402$$3RB$$$$

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

W-WC0402$$3RB$$$$

Name Identifying order number

WCMT040204-E47 WPP20

NameAnsi Identifying order number inch alternative

WCMT2(1.5)1-E47 WPP20

RE Corner radius

0.4 mm

S Insert thickness

2.38 mm

S1 Insert thickness total

2.38 mm

STDDES Standard designation

WCMT040204

STDDESAnsi Standard designation ANSI

WCMT21.51

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

BVB - Drilling

WT Weight of item

0.001 kg
