WCMT040202-PF4 WPP01

Артикул: 5263166

В наличии

В корзину

Описание

Характеристики

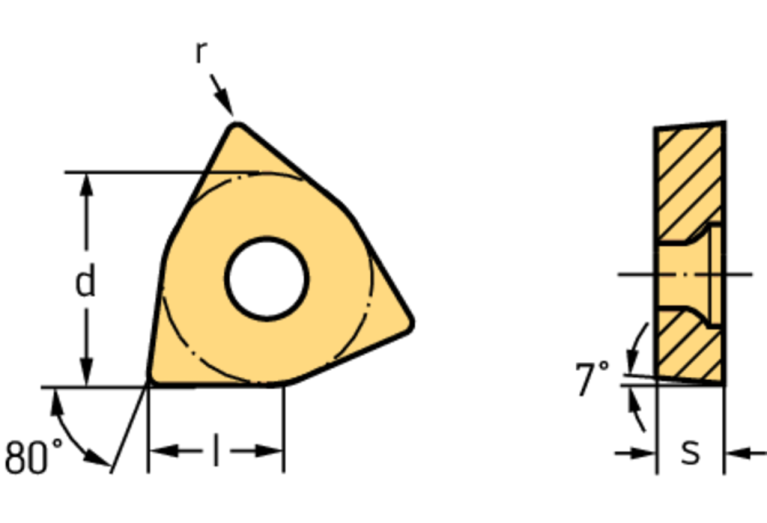

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

PF4

CECC Cutting edge condition code

E - Rounded

COATN Coating

TiCN+Al2O3+(TiN)

COMPC Company code

W - Walter

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

2.8 mm

Delivery state valid from

12/1/2023

DIN

WC0402023N

EPSR Insert included angle

80 Degree

FamilyProducts

Positive Trigon 80° WCMT

GRDMFG Grade manufacturers designation

WPP01

IC Inscribed circle diameter

6.35 mm

ID Technical product number

5263166

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

ISO$WC0402023NB$$02

ISYC Subclass

201-07 - Trigon insert

L Cutting edge length

4.3437 mm

LOC-03 ISO

ISO$WC0402023NB$$02

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

WC0402023N

MIID Master insert identification

WCMT040202 WPP01

Name Identifying order number

WCMT040202-PF4 WPP01

NameAnsi Identifying order number inch alternative

WCMT2(1.5).5-PF4 WPP01

NOI Insert index count

RE Corner radius

0.2 mm

S Insert thickness

2.38125 mm

S1 Insert thickness total

2.38125 mm

STDDES Standard designation

WCMT040202

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

No working processes available

WT Weight of item

0.001 kg
