Главная Каталог продукции Toolunited 10 201-07 - Trigon insert WCGT06T308-PF2 WK1

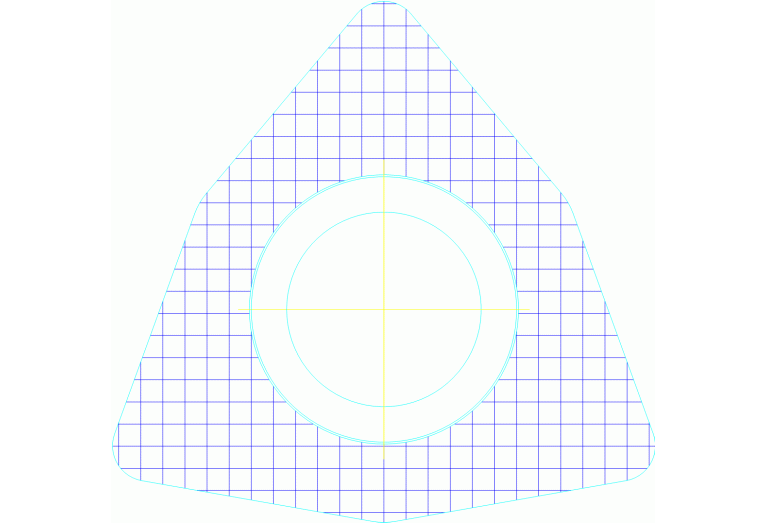

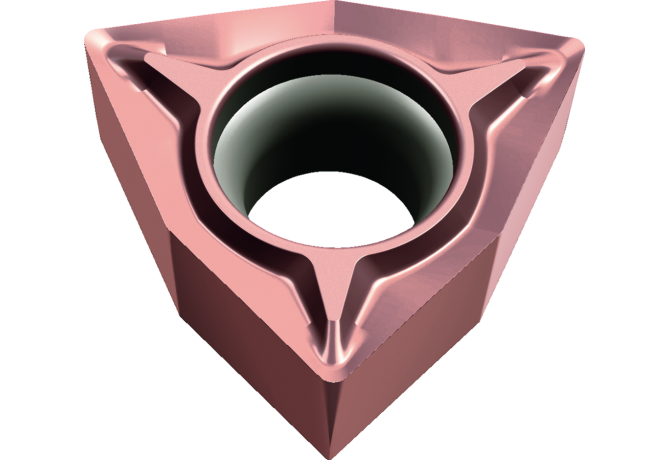

WCGT06T308-PF2 WK1

Артикул: 5337523

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

PF2

COMPC Company code

W - Walter

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

4.4 mm

Delivery state valid from

12/1/2023

DIN

WC06T3083N

EPSR Insert included angle

80 Degree

FamilyProducts

Positive Trigon 80° WCGT

GRDMFG Grade manufacturers designation

WK1

IC Inscribed circle diameter

9.525 mm

ID Technical product number

5337523

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

ISO$WC06T3083NB$$08

ISYC Subclass

201-07 - Trigon insert

L Cutting edge length

6.5155 mm

LOC-03 ISO

ISO$WC06T3083NB$$08

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

WC06T3083N

MIID Master insert identification

WCGT06T308 WK1

Name Identifying order number

WCGT06T308-PF2 WK1

NameAnsi Identifying order number inch alternative

WCGT3(2.5)2-PF2 WK1

NOI Insert index count

RE Corner radius

0.8 mm

S Insert thickness

3.96875 mm

S1 Insert thickness total

3.96875 mm

STDDES Standard designation

WCGT06T308

STDDESAnsi Standard designation ANSI

WCGT32.52

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

No working processes available

WT Weight of item

0.004 kg
