WCGT06T304-FN2 WNN10

Артикул: 6955678

В наличии

В корзину

Описание

Характеристики

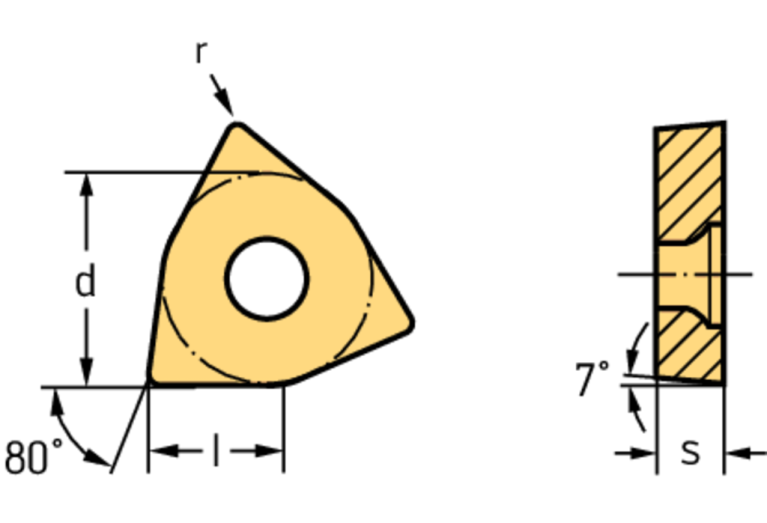

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

FN2

CECC Cutting edge condition code

F - Sharpedged

COATN Coating

TiAlN

COMPC Company code

W - Walter

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

4.4 mm

Delivery state valid from

12/1/2023

DIN

WC06T3043N

EPSR Insert included angle

80 Degree

FamilyProducts

Positive Trigon 80° WCGT

GRDMFG Grade manufacturers designation

WNN10

IC Inscribed circle diameter

9.525 mm

ID Technical product number

6955678

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

ISO$WC06T3043NB$$04

ISYC Subclass

201-07 - Trigon insert

L Cutting edge length

6.516 mm

LOC-03 ISO

ISO$WC06T3043NB$$04

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

WC06T3043N

MIID Master insert identification

WCGT06T304 WNN10

Name Identifying order number

WCGT06T304-FN2 WNN10

NameAnsi Identifying order number inch alternative

WCGT3(2.5)1-FN2 WNN10

NOI Insert index count

RE Corner radius

0.4 mm

S Insert thickness

3.969 mm

S1 Insert thickness total

3.969 mm

STDDES Standard designation

WCGT06T304

STDDESAnsi Standard designation ANSI

WCGT32.51

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

No working processes available

WT Weight of item

0.004 kg
