WCGT020104-FN2 WNN10

Артикул: 7629772

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

FN2

CECC Cutting edge condition code

F - Sharpedged

COATN Coating

TiAlN

COMPC Company code

W - Walter

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

2.15 mm

Delivery state valid from

12/1/2023

DIN

WC0201043N

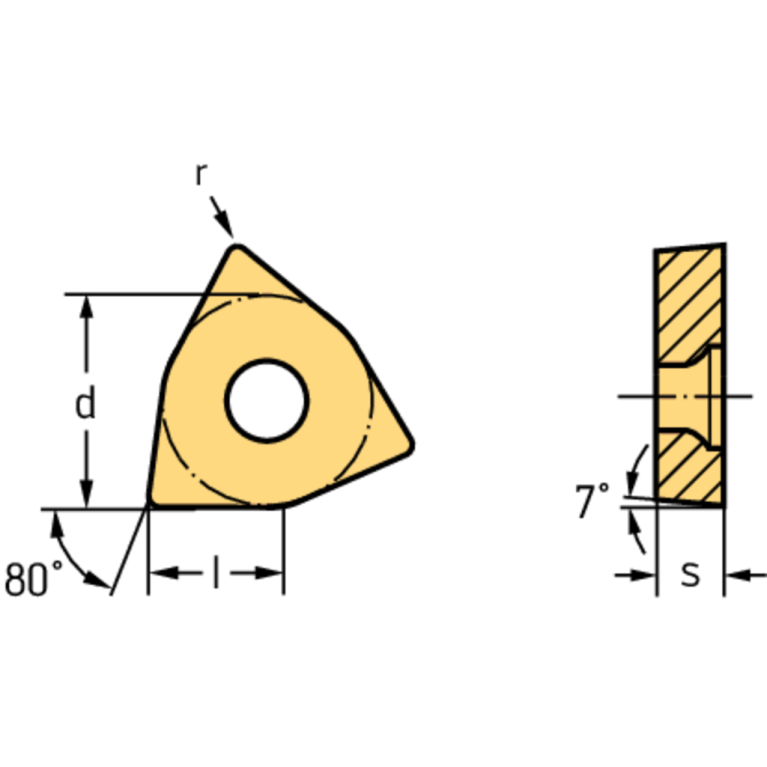

EPSR Insert included angle

80 Degree

FamilyProducts

Positive Trigon 80° WCGT

GRDMFG Grade manufacturers designation

WNN10

IC Inscribed circle diameter

3.97 mm

ID Technical product number

7629772

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

ISO$WC0201043NB$$04

ISYC Subclass

201-07 - Trigon insert

L Cutting edge length

2.7 mm

LOC-03 ISO

ISO$WC0201043NB$$04

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

WC0201043N

MIID Master insert identification

WCGT020104 WNN10

Name Identifying order number

WCGT020104-FN2 WNN10

NameAnsi Identifying order number inch alternative

WCGT1.2(1)1-FN2 WNN10

NOI Insert index count

RE Corner radius

0.4 mm

S Insert thickness

1.59 mm

S1 Insert thickness total

1.59 mm

STDDES Standard designation

WCGT020104

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

No working processes available

WT Weight of item

0.001 kg
