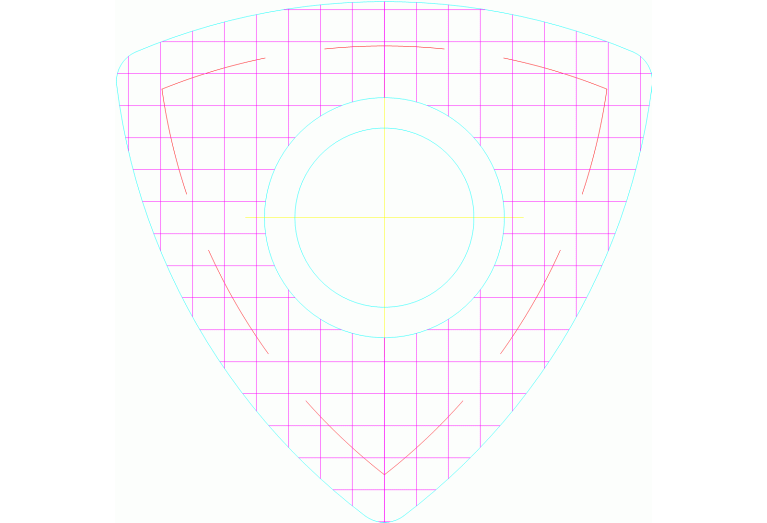

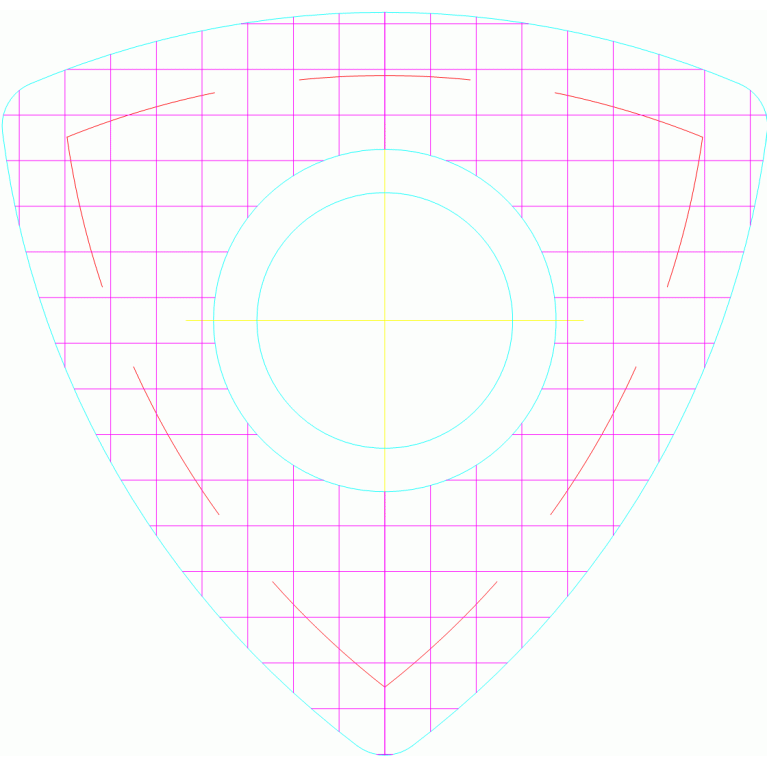

Главная Каталог продукции Toolunited 10 201-07 - Trigon insert P26337R10 WKP35

P26337R10 WKP35

Артикул: 5049075

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

14 Degree

CECC Cutting edge condition code

S - Chamfered and rounded

CEMR Cutting edge major radius

10 mm

COMPC Company code

W - Walter

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

2.8 mm

Delivery state valid from

12/1/2023

DIN

W-P263X5103RB$$$$

FamilyProducts

Positive triangular P26337

GRDMFG Grade manufacturers designation

WKP35

IC Inscribed circle diameter

6.75 mm

ID Technical product number

5049075

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 / J441

ISISO ISO property

ISO

WR$$P263X5103RB$$$$

ISYC Subclass

201-07 - Trigon insert

LOC-03 ISO

WR$$P263X5103RB$$$$

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

W-P263X5103RB$$$$

Name Identifying order number

P26337R10 WKP35

NOI Insert index count

RE Corner radius

0.8 mm

S Insert thickness

3.18 mm

S1 Insert thickness total

3.18 mm

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

FPL - Face milling

WT Weight of item

0.001 kg
