P26315R25 WKP35
P26315R25 WKP35
Артикул:
5052115
В наличии
Характеристики

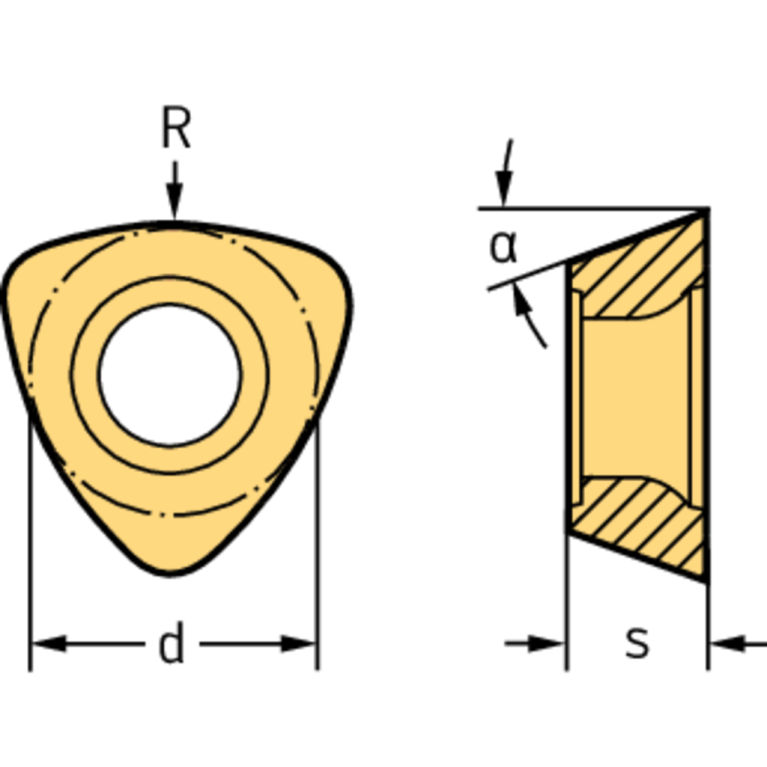

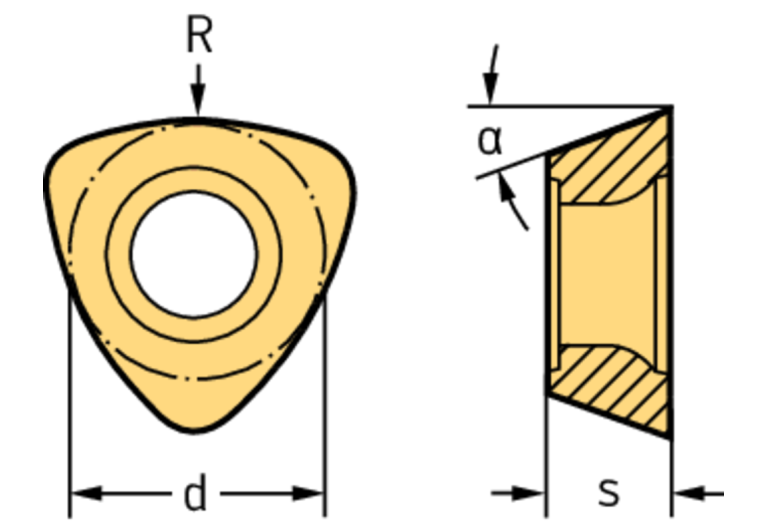

AN Clearance angle major
11 Degree
CBMD Chip breaker manufacturers designation
D57
CECC Cutting edge condition code
S - Chamfered and rounded
CEMR Cutting edge major radius
25 mm
COATN Coating
TiCN+Al2O3+(TiN)
COMPC Company code
W - Walter
CSP Coolant supply property
0 - Without coolant supply
D1 Fixing hole diameter
5.5 mm
Delivery state valid from
12/1/2023
DIN
W-P22504$$3NB$M$$
FamilyProducts
Positive triangular P26315
GRDMFG Grade manufacturers designation
WKP35
IC Inscribed circle diameter
12.7 mm
ID Technical product number
5052115
IFS Insert mounting style code
3 - Counter bore for screws with taper angle from 40° to 60°
IH Insert hand
N - Neutral
Interface codes
J6 / J441
ISISO ISO property
0
ISO
WR$$P22504$$3NB$M$$
ISYC Subclass
201-07 - Trigon insert
LOC-03 ISO
WR$$P22504$$3NB$M$$
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
W-P22504$$3NB$M$$
Name Identifying order number
P26315R25 WKP35
NOI Insert index count
3
RE Corner radius
1.2 mm
S Insert thickness
4.76 mm
S1 Insert thickness total
4.76 mm
TCE Tipped cutting edge code
S
TCINS Tolerance class insert
M
Working process
FPL - Face milling
WT Weight of item
0.008 kg
