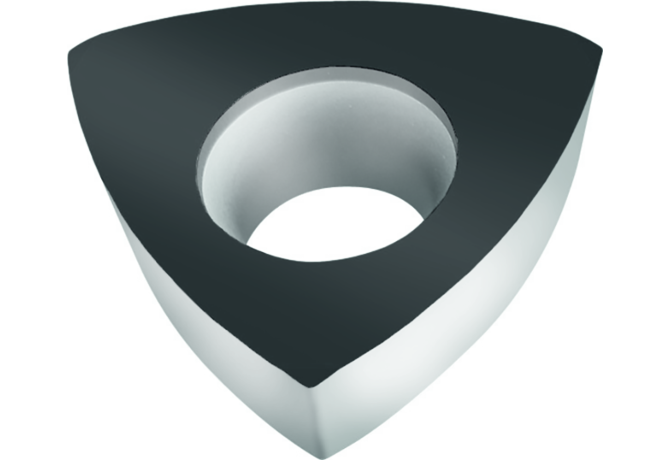

P26315R16 WAK15

Артикул: 5015828

В наличии

В корзину

Описание

Характеристики

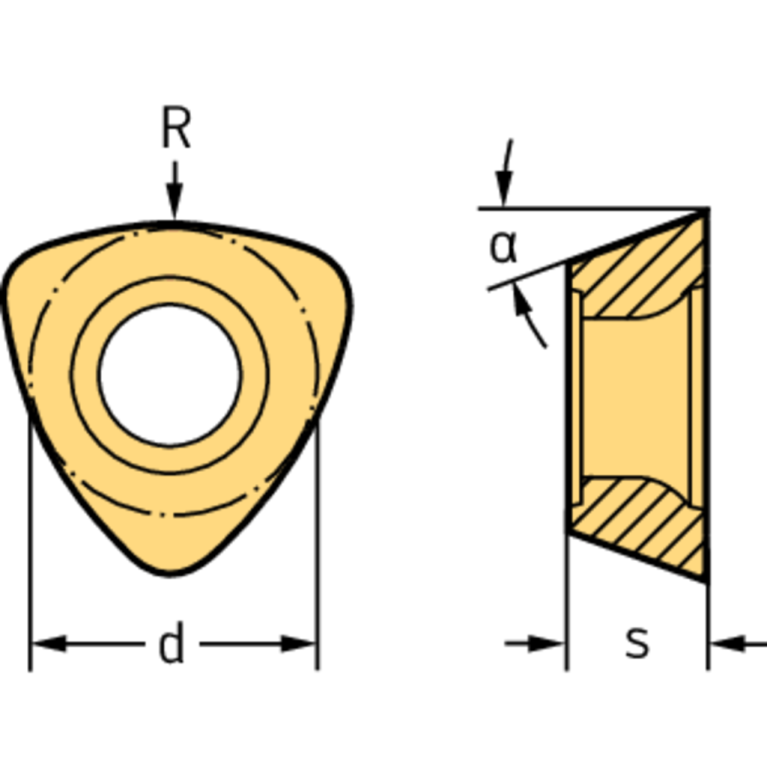

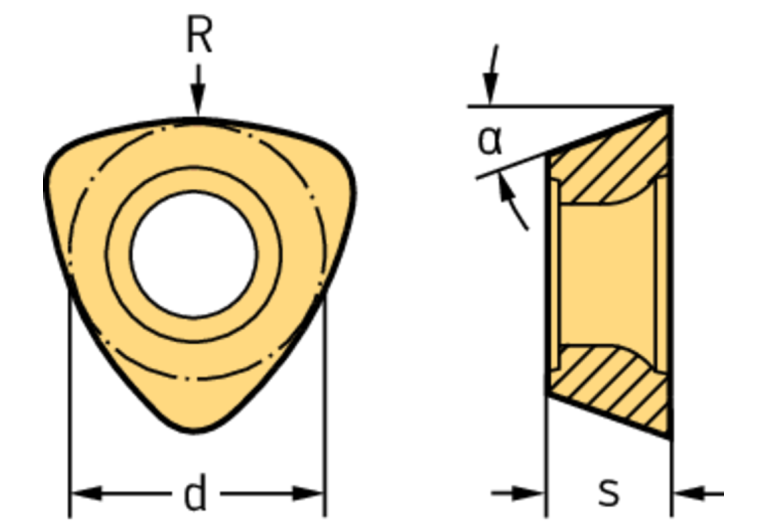

AN Clearance angle major

14 Degree

CBMD Chip breaker manufacturers designation

D57

CECC Cutting edge condition code

S - Chamfered and rounded

CEMR Cutting edge major radius

16 mm

COATN Coating

TiCN+Al2O3+(TiN)

COMPC Company code

W - Walter

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

4.4 mm

Delivery state valid from

12/1/2023

DIN

W-P216T3$$3NB$M$$

FamilyProducts

Positive triangular P26315

GRDMFG Grade manufacturers designation

WAK15

IC Inscribed circle diameter

10.5 mm

ID Technical product number

5015828

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

WR$$P216T3$$3NB$M$$

ISYC Subclass

201-07 - Trigon insert

LOC-03 ISO

WR$$P216T3$$3NB$M$$

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

W-P216T3$$3NB$M$$

Name Identifying order number

P26315R16 WAK15

NOI Insert index count

RE Corner radius

0.6 mm

S Insert thickness

3.97 mm

S1 Insert thickness total

3.97 mm

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

FPL - Face milling

WT Weight of item

0.007 kg
