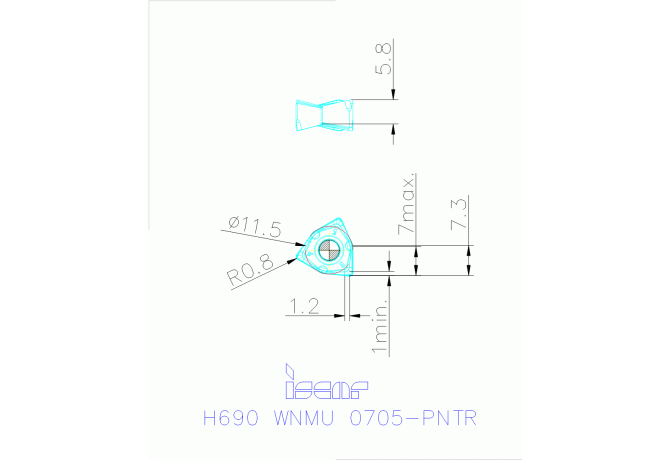

H690 WNMU 0705-PNTR IC5100
H690 WNMU 0705-PNTR IC5100
Артикул:
5607703
В наличии
Характеристики
AN Clearance angle major
0 Degree
AS Clearance angle wiper edge
0 Degree
BS Wiper edge length
1.2 mm
CB Chip breaker face count
2 - With chip breaker on both sides
CECC Cutting edge condition code
T - Chamfered
COMPC Company code
IS - Iscar
CSP Coolant supply property
0 - Without coolant supply
EPSR Insert included angle
90 Degree
FamilyProducts
Trigonal inserts with 6 helical 90° cutting edges
GAN Insert rake angle
0.01 Degree
GRDMFG Grade manufacturers designation
IC5100
IC Inscribed circle diameter
11.5 mm
ID Technical product number
5607703
IFS Insert mounting style code
3 - Counter bore for screws with taper angle from 40° to 60°
IH Insert hand
R - Right
Interface codes
/ J441
ISISO ISO property
0
ISO
IS$$154382400007220
ISYC Subclass
201-07 - Trigon insert
KRINS Cutting edge angle major
90 Degree
L Cutting edge length
7.3 mm
LE Cutting edge effective length
7 mm
LOC-03 ISO
IS$$154382400007220
LOC-03-Connection-codes
J6 / J441 - connection code machine end
Name Identifying order number
H690 WNMU 0705-PNTR IC5100
NOI Insert index count
6
RE Corner radius
0.8 mm
S Insert thickness
5.9 mm
TCINS Tolerance class insert
M
Working process
No working processes available
