252012 PV720
252012 PV720
Артикул:
252012 PV720
В наличии
Характеристики
AN Clearance angle major
0 Degree
CB Chip breaker face count
2 - With chip breaker on both sides
COATN Coating
MEGACOAT NANO
COMPC Company code
HOG - Hoffmann Group
CSP Coolant supply property
0 - Without coolant supply
DIN
WN0804042N

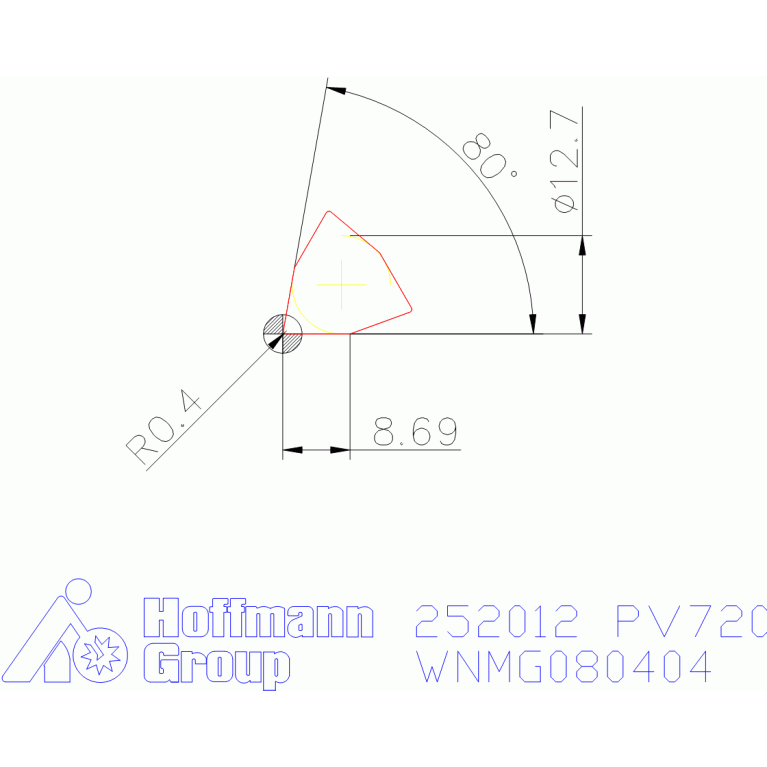

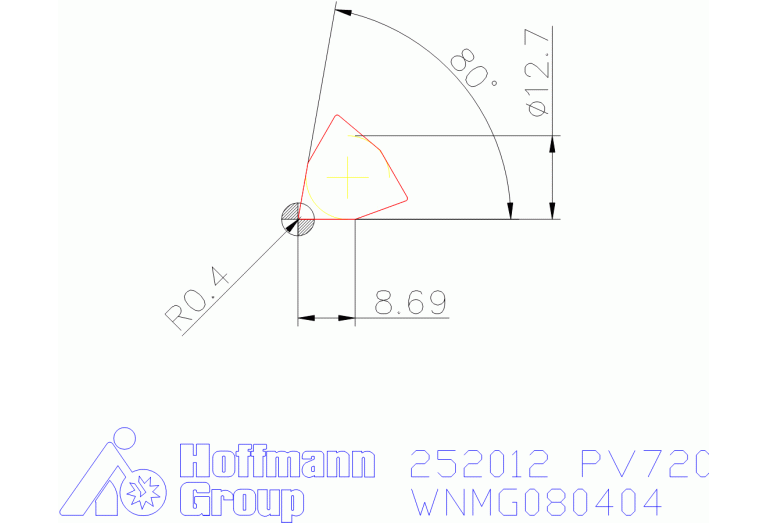

EPSR Insert included angle
80 Degree
FamilyProducts
WNMG 080404
GAN Insert rake angle
15 Degree
GRDMFG Grade manufacturers designation
PV720
IC Inscribed circle diameter
12.7 mm
IFS Insert mounting style code
2 - With cylindrical bore
IH Insert hand
N - Neutral
Interface codes
J6 /
ISISO ISO property
0
ISYC Subclass
201-07 - Trigon insert
L Cutting edge length
8.7 mm
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
WN0804042N
Name Identifying order number
252012 PV720
RE Corner radius
0.4 mm
S Insert thickness
4.76 mm
S1 Insert thickness total
4.76 mm
STDDES Standard designation
WNMG080404
STDDESAnsi Standard designation ANSI
WNMG431
TCE Tipped cutting edge code
M
TCINS Tolerance class insert
M
Working process
No working processes available
WT Weight of item
0.01 kg
