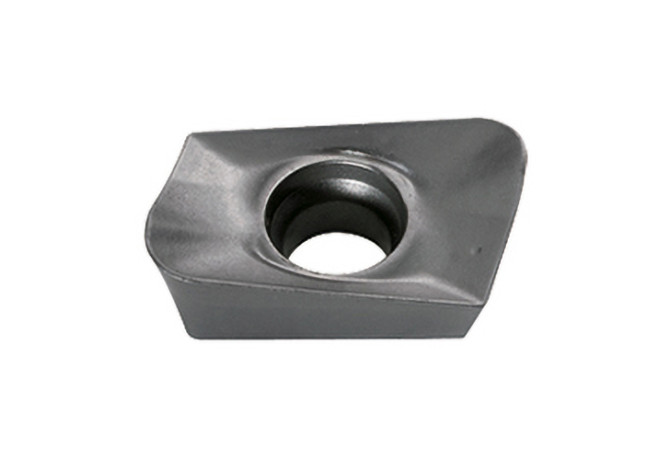

Главная Каталог продукции Toolunited 10 201-05 - Parallelogram-shaped insert BOMT130420R IN2530

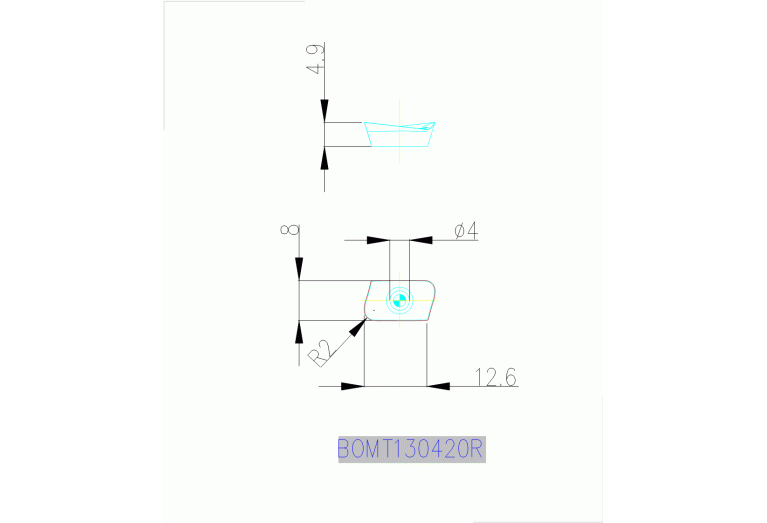

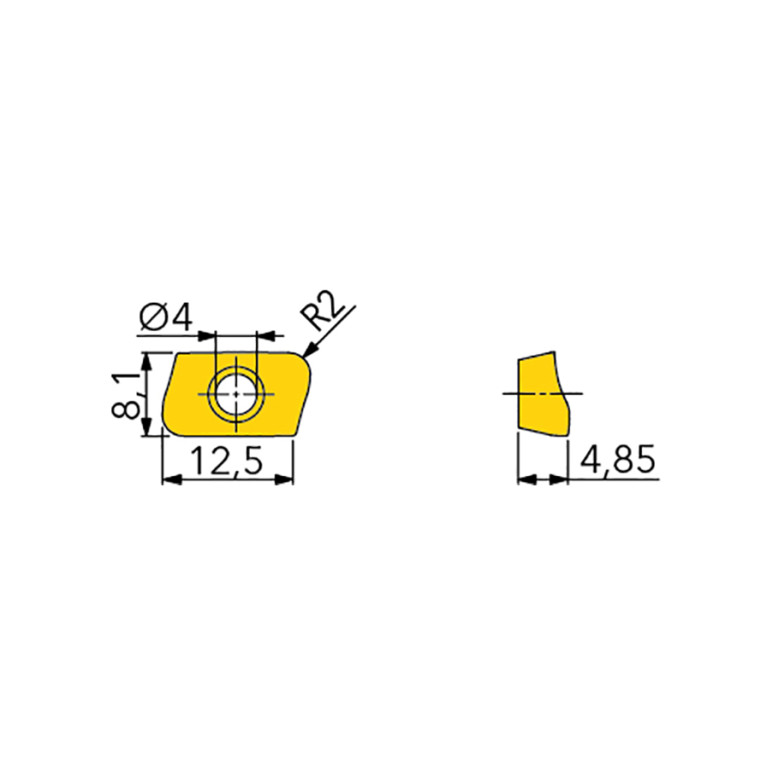

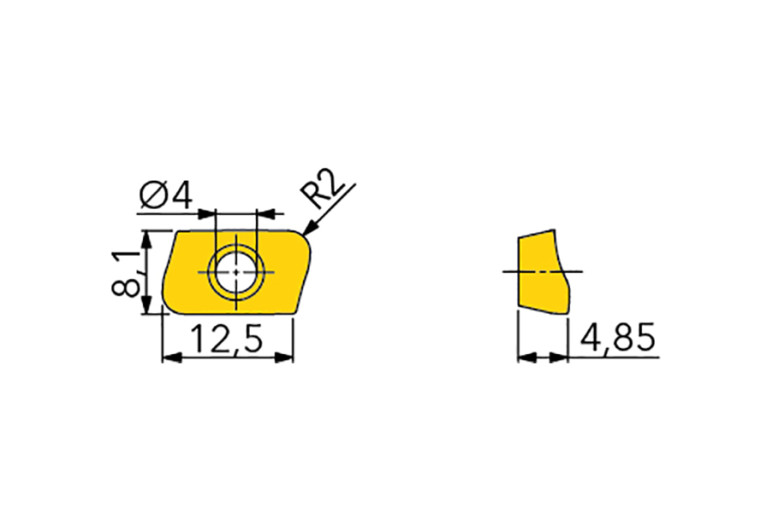

BOMT130420R IN2530

Артикул: 5813393

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

13 Degree

CB Chip breaker face count

1 - With chip breaker one-side

COATN Coating

TiAlN+TiN

COMPC Company code

IL - Ingersoll

D1 Fixing hole diameter

4 mm

Delivery state

LL - Stock limited

DIN

BO1304 3R

EPSR Insert included angle

82 Degree

FamilyProducts

insert, double-edged, positive geometry with R2,0

GRD2ND Standard designation of the grade 2nd application

M15-M30

GRD3RD Standard designation of the grade 3rd application

K20-K40

GRDMFG Grade manufacturers designation

IN2530

GRDPRIO Standard designation of the grade main application

P20-P40

IC Inscribed circle diameter

8.1 mm

ID Technical product number

5813393

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-05 - Parallelogram-shaped insert

L Cutting edge length

10.6 mm

LE Cutting edge effective length

12 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

BO1304 3R

Name Identifying order number

BOMT130420R IN2530

RE Corner radius

2 mm

S Insert thickness

4.85 mm

S1 Insert thickness total

4.85 mm

STDDES Standard designation

BOMT130420

TCINS Tolerance class insert

W1 Insert width

8.1 mm

Working process

No working processes available
