Главная Каталог продукции Toolunited 10 201-05 - Parallelogram-shaped insert BOMT130404R-DT2 IN90D

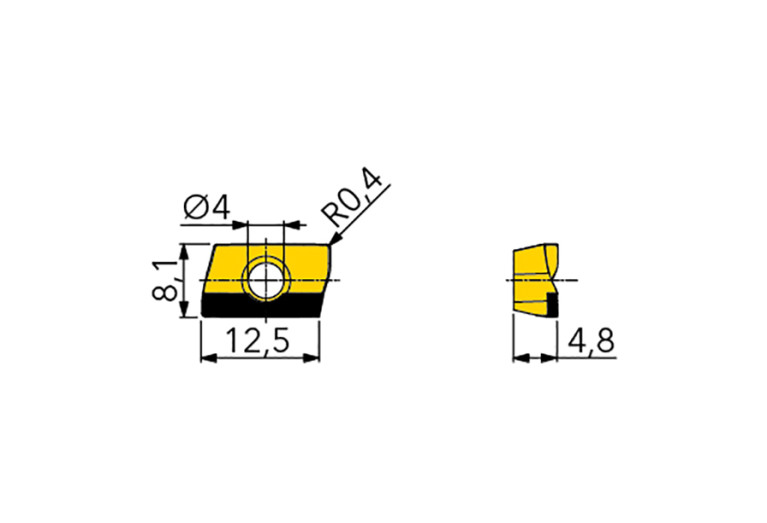

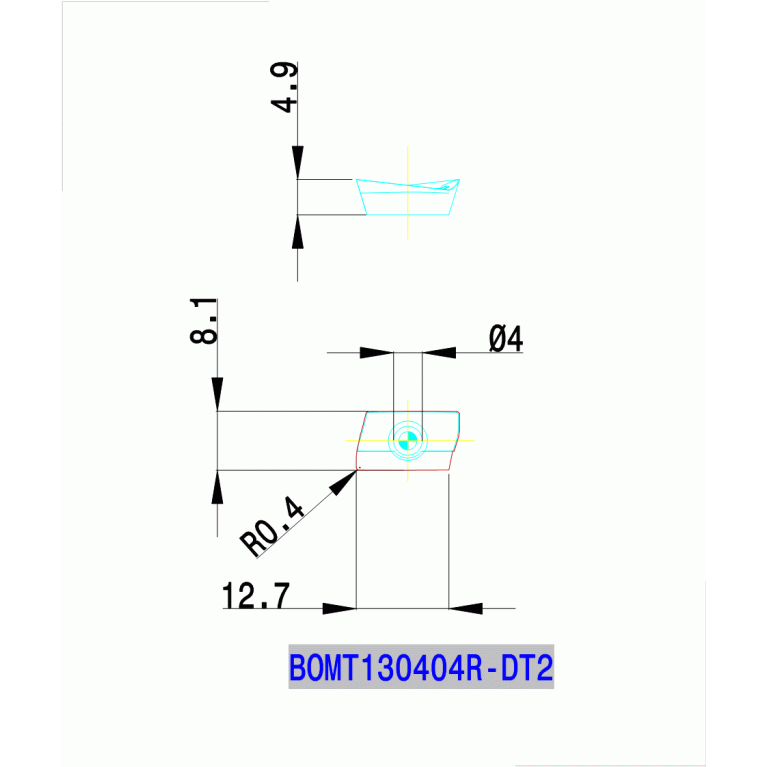

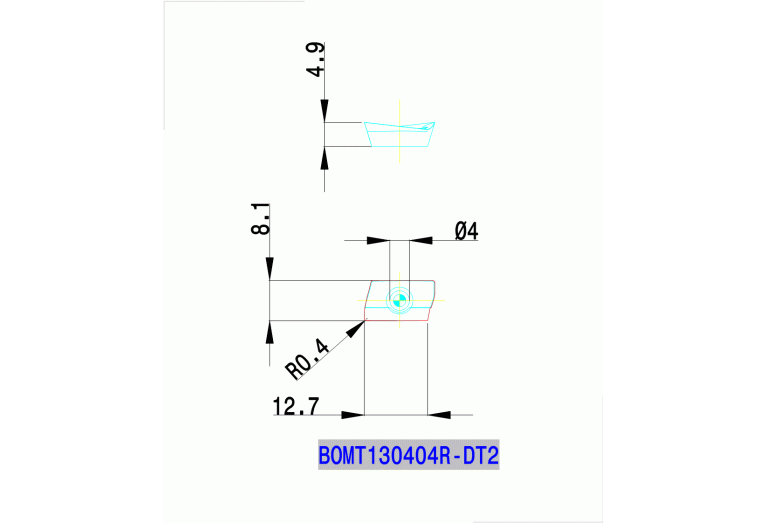

BOMT130404R-DT2 IN90D

Артикул: 5873800

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

13 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

DT2

COATN Coating

PKD

COMPC Company code

IL - Ingersoll

D1 Fixing hole diameter

4 mm

Delivery state

LL - Stock limited

DIN

BO1304 3R

EPSR Insert included angle

82 Degree

FamilyProducts

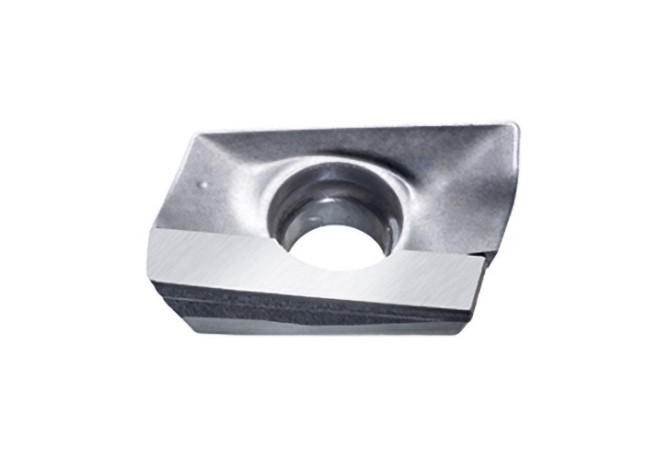

insert, single-edged, positive insert with long PCD-tip with R0,4

GRDMFG Grade manufacturers designation

IN90D

GRDPRIO Standard designation of the grade main application

N01-N10

IC Inscribed circle diameter

8.1 mm

ID Technical product number

5873800

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-05 - Parallelogram-shaped insert

L Cutting edge length

12.3 mm

LE Cutting edge effective length

12 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

BO1304 3R

Name Identifying order number

BOMT130404R-DT2 IN90D

RE Corner radius

0.4 mm

S Insert thickness

4.85 mm

S1 Insert thickness total

4.85 mm

STDDES Standard designation

BOMT130404

TCINS Tolerance class insert

W1 Insert width

8.1 mm

Working process

No working processes available
