Главная Каталог продукции Toolunited 10 201-05 - Parallelogram-shaped insert BOMT09T304R-DT2 IN90D

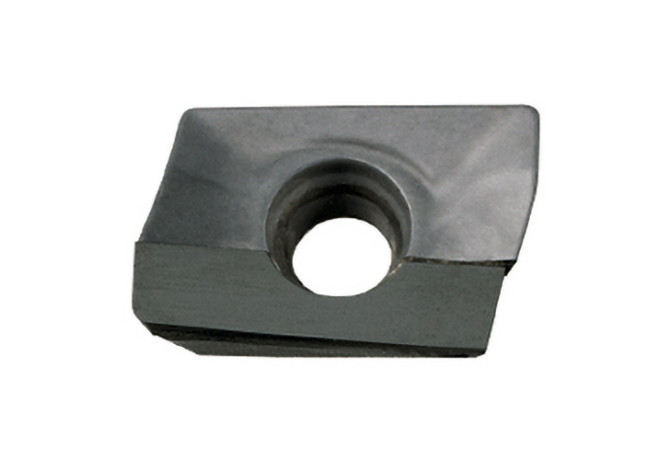

BOMT09T304R-DT2 IN90D

Артикул: 5850784

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

13 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

DT2

COATN Coating

PKD

COMPC Company code

IL - Ingersoll

D1 Fixing hole diameter

2.8 mm

Delivery state

LL - Stock limited

DIN

BO09T3 3R

EPSR Insert included angle

82 Degree

FamilyProducts

insert, single-edged, positive insert with long PCD-tip with R0,4

GRDMFG Grade manufacturers designation

IN90D

GRDPRIO Standard designation of the grade main application

N01-N10

IC Inscribed circle diameter

6.6 mm

ID Technical product number

5850784

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-05 - Parallelogram-shaped insert

L Cutting edge length

9.1 mm

LE Cutting edge effective length

9 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

BO09T3 3R

Name Identifying order number

BOMT09T304R-DT2 IN90D

RE Corner radius

0.4 mm

S Insert thickness

3.97 mm

S1 Insert thickness total

3.75 mm

STDDES Standard designation

BOMT09T304

TCINS Tolerance class insert

W1 Insert width

6.6 mm

Working process

No working processes available
