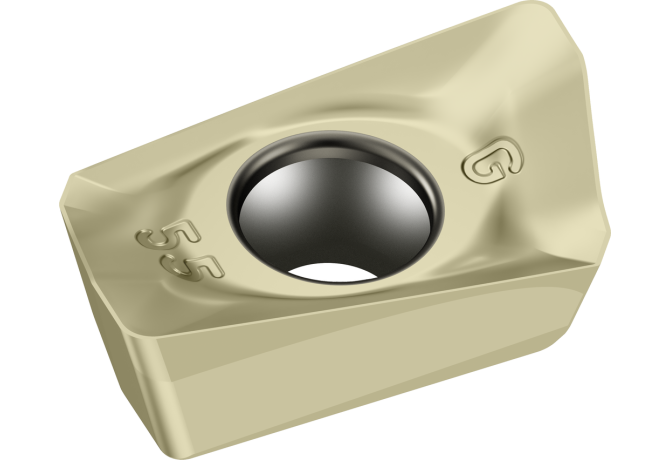

BCMT120420R-G55 WKP35G

BCMT120420R-G55 WKP35G BCMT120420R-G55 WKP35G BCMT120420R-G55 WKP35G

BCMT120420R-G55 WKP35G

Walter
Артикул: 7539611
В наличии
В корзину
Описание
Характеристики

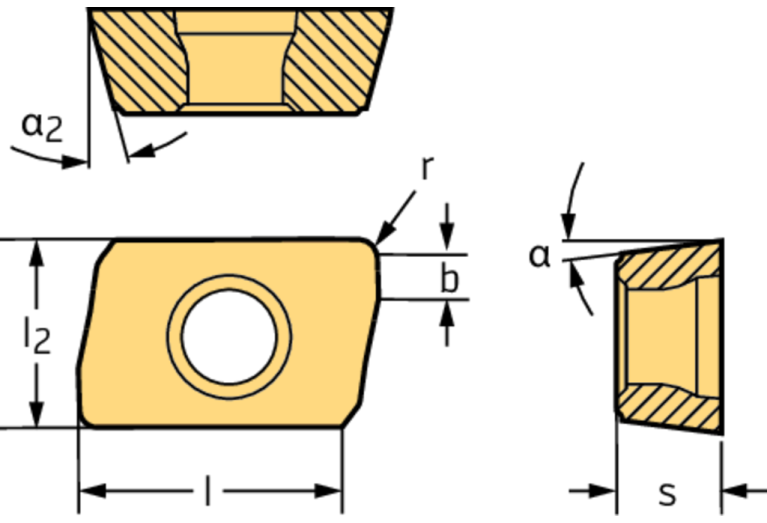

AN Clearance angle major
7 Degree
ANN Clearance angle minor
15 Degree
BS Wiper edge length
1.2 mm
CBMD Chip breaker manufacturers designation
G55
CECC Cutting edge condition code
S - Chamfered and rounded
COATN Coating
TiAlN+TiN
COMPC Company code
W - Walter
CSP Coolant supply property
0 - Without coolant supply
D1 Fixing hole diameter
3.4 mm
Delivery state valid from
12/1/2023
DIN
W-BC1204203RB$$20
EPSR Insert included angle
82 Degree
FamilyProducts
Positive rhombic BCMT
GRDMFG Grade manufacturers designation
WKP35G
ID Technical product number
7539611
IFS Insert mounting style code
3 - Counter bore for screws with taper angle from 40° to 60°
IH Insert hand
R - Right
Interface codes
J6 / J441
ISISO ISO property
0
ISO
WR$$BC1204203RB$$20
ISYC Subclass
201-05 - Parallelogram-shaped insert
L Cutting edge length
13.8 mm
LOC-03 ISO
WR$$BC1204203RB$$20
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
W-BC1204203RB$$20
Name Identifying order number
BCMT120420R-G55 WKP35G
NOI Insert index count
2
RE Corner radius
2 mm
S Insert thickness
4.8 mm
S1 Insert thickness total
3.5 mm
STDDES Standard designation
BCMT120420R
TCE Tipped cutting edge code
S
TCINS Tolerance class insert
M
W1 Insert width
7.3 mm
Working process
FPL - Face milling
WT Weight of item
0.004 kg
